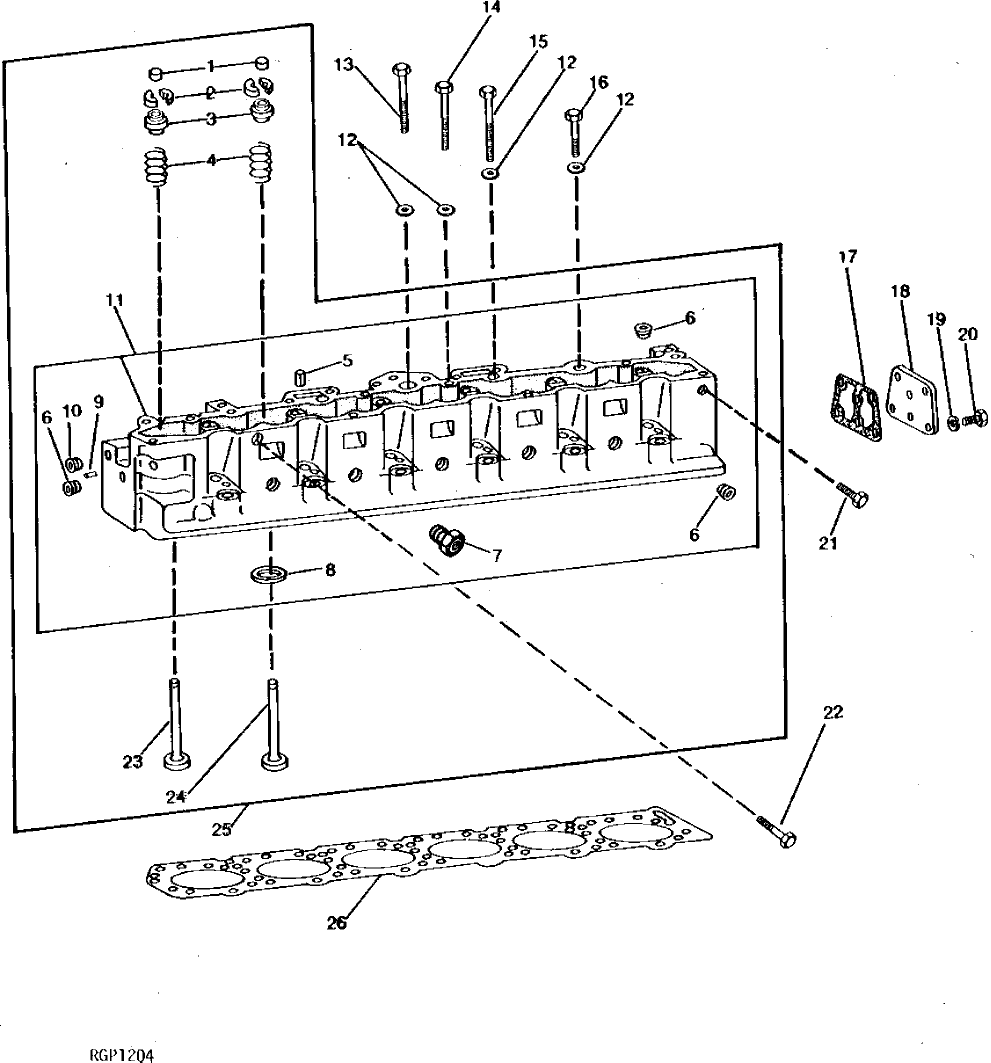

Запчасти John Deere 90CR 2 - CYLINDER HEAD AND VALVES 409 - ENGINE 4

1

T20129

CAP

12шт.

2

T20077

RETAINER

24шт.

3

RE11410

ROTATOR

12шт.

4

R26125

SPRING

12шт.

5

34H387

SPRING PIN

3/16" X 3/4"

1шт.

6

15H665

PIPE PLUG

3/4"

11шт.

7

R76491

PIPE PLUG

1шт.

8

R78702

VALVE SEAT INSERT

STANDARD

12шт.

R82508

VALVE SEAT INSERT

0.25 MM (.010") OVERSIZE, (SUB FOR R55061, THIS APPLICATION)

12шт.

9

F1743R

DOWEL PIN

1шт.

10

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

1шт.

11

AR103505

CYLINDER HEAD

(MARKED R76384 OR R76315)

1шт.

12

R76126

WASHER

14.681 X 25.400 X 2.667 MM (37/64" X 1" X 0.105")

26шт.

13

R62420

SCREW

14.275 X 190.500 MM (9/16" X 7-1/2")

7шт.

14

R62419

SCREW

14.275 X 162.052 MM (9/16" X 6.380")

8шт.

15

R62418

SCREW

14.275 X 136.652 MM (9/16" X 5.380")

5шт.

16

R62421

SCREW

14.275 X 85.852 MM (9/16" X 3.380")

6шт.

17

R43595

GASKET

1шт.

18

R51347

COVER

1шт.

19

12H331

LOCK WASHER

3/8"

6шт.

20

19H2284

CAP SCREW

3/8" X 7/8"

6шт.

21

19H1756

CAP SCREW

5/8" X 1-1/2"

2шт.

22

19H2367

CAP SCREW

5/8" X 3/4", (SUB FOR R77372)

1шт.

23

R50358

INTAKE VALVE

STANDARD

6шт.

R55055

INTAKE VALVE

0.08 MM (.003") OVERSIZE

6шт.

R55057

INTAKE VALVE

0.38 MM (.015") OVERSIZE

6шт.

R55059

INTAKE VALVE

0.76 MM (.030") OVERSIZE

6шт.

24

R50357

EXHAUST VALVE

STANDARD

6шт.

R55056

EXHAUST VALVE

0.08 MM (.003") OVERSIZE

6шт.

R55058

EXHAUST VALVE

0.38 MM (.015") OVERSIZE

6шт.

R55060

EXHAUST VALVE

0.76 MM (.030") OVERSIZE

6шт.

25

RE11470

CYLINDER HEAD

1шт.

26

R55182

GASKET

(SUB RE47336)

1шт.

RE47336

ENGINE CYLINDER HEAD GASKET

1шт.
