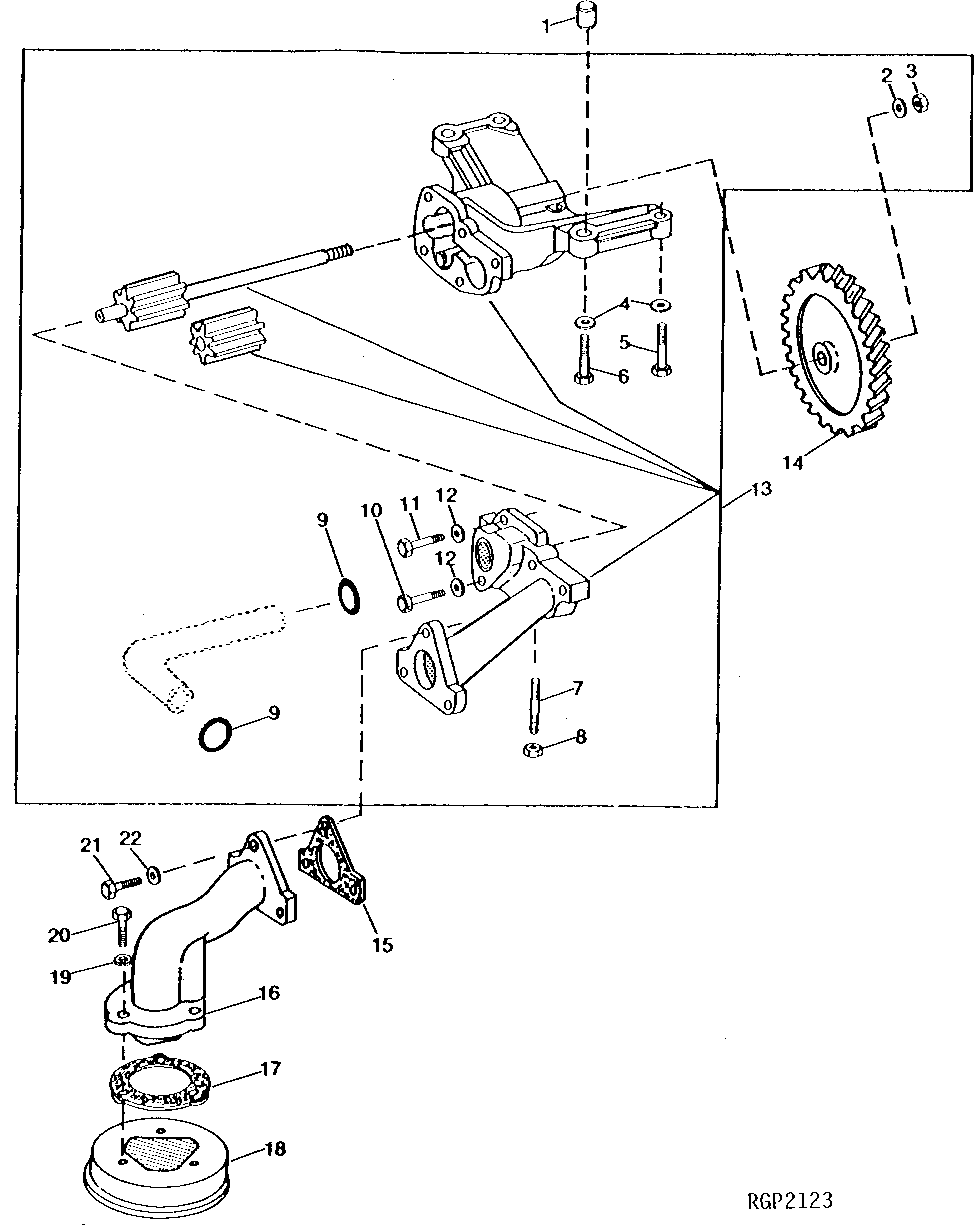

Запчасти John Deere 90CR 4 - ENGINE OIL PUMP 407 - ENGINE 4

1

R62930

BUSHING

(SUB R500642)

2шт.

R500642

BUSHING

1шт.

2

T21242

WASHER

1шт.

3

R79187

NUT

1шт.

4

R57696

WASHER

4шт.

5

19H3385

CAP SCREW

1/2" X 1-1/8"

2шт.

6

19H2549

CAP SCREW

3/8" X 1-7/8"

2шт.

7

22H1040

SET SCREW

5/16" X 1-1/4"

1шт.

8

14H785

NUT

5/16"

1шт.

9

R71732

O-RING

2шт.

10

19H2722

CAP SCREW

3/8" X 2-3/8"

2шт.

11

19H1765

CAP SCREW

3/8" X 1-3/4"

3шт.

12

R42729

WASHER

(SUB FOR R70234)

5шт.

13

AR96193

OIL PUMP

1шт.

14

R62938

GEAR

1шт.

15

R71312

GASKET

1шт.

16

R79864

ELBOW FITTING

1шт.

17

R52049

GASKET

1шт.

18

AR56639

OIL PUMP INTAKE

1шт.

19

12H303

LOCK WASHER

5/16"

3шт.

20

19H2705

CAP SCREW

5/16" X 1"

3шт.

21

19H3239

CAP SCREW

3/8" X 1-1/4"

3шт.

22

R42729

WASHER

(SUB FOR R70234)

3шт.
