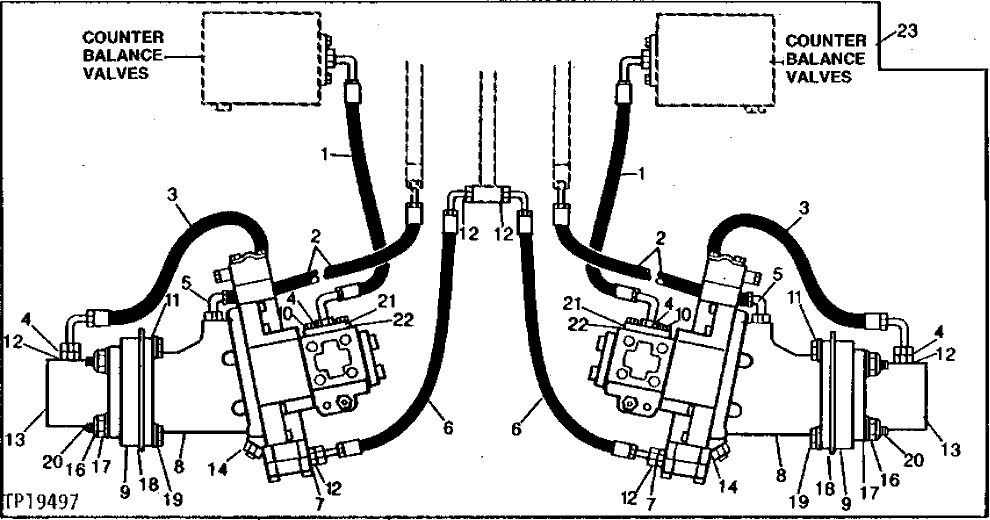

Запчасти John Deere 90C 18 - LINDE PISTON PROPEL MOTOR CONVERSION KIT 260 - AXLES AND SUSPENSION SYSTEMS 2

1

AT105461

HYDRAULIC HOSE - FABRICATE

(COUNTER BALANCE VALVES TO PROPEL MOTOR PORTS)

4шт.

2

AT40598

HYDRAULIC HOSE - FABRICATE

(TO LOWER TUBE COMING THROUGH HOLE IN TOWER TO 2 - SPEED SHIFT PORT IN PROPEL MOTORS)

2шт.

3

AT81900

HYDRAULIC HOSE - FABRICATE

(BRAKE PORT IN PROPEL MOTOR TO BRAKE PORT)

2шт.

4

38H1160

ADAPTER FITTING

(BRAKE PORT PROPEL MOTOR AND BRAKE PORT IN BRAKE)

4шт.

5

AH20193

ELBOW FITTING

(PROPEL MOTORS DRAIN PORT ADAPTERS)

2шт.

6

AT40598

HYDRAULIC HOSE - FABRICATE

2шт.

7

AL55385

ELBOW FITTING

(SUB FOR AT35120) (PROPEL MOTORS 2 - SPEED SHIFT PORTS)

2шт.

8

AT105426

HYDRAULIC MOTOR

2шт.

9

T81386

ADAPTER FITTING

(BETWEEN MOTOR AND BRAKE)

2шт.

10

19H2993

CAP SCREW

HS, SAE 8, 1/2" X 1-1/2", (SPLIT FLANGES TO PROPEL MOTOR)

16шт.

11

24M7241

WASHER

17 X 34 X 4 MM, (SUB FOR T40728) (MOTOR TO ADAPTER)

8шт.

12

T70177

O-RING

(TWO USED WITH TWO SPEED PORT IN PROPEL MOTORS) (SIX USED WITH BRAKE PORT FITTINGS AND PLUGS)

8шт.

13

R55453

O-RING

(PROPEL MOTOR TO BRAKE AND BRAKE TO GEARBOX)

4шт.

14

R27218

FITTING PLUG

(PLUG BRAKE PORT IN COUNTERBALANCE VALVES)

2шт.

15

R47151

O-RING

(DRAIN PORT ADAPTER IN MOTORS)

2шт.

16

K40014

LOCK NUT

(ADAPTER AND BRAKE TO GEARBOX)

8шт.

17

N31767

WASHER

(ADAPTER AND BRAKE TO GEARBOX)

8шт.

18

T81385

GASKET

(MOTOR TO ADAPTER)

2шт.

19

19M7719

CAP SCREW

M16 X 70, (MOTOR TO ADAPTER)

8шт.

20

T67716

STUD

(GEAR BOX THROUGH BRAKE TO ADAPTER)

8шт.

21

N131838

O-RING

(PRESSURE HOSES TO MOTORS AND COUNTERBALANCE VALVES)

4шт.

22

T81202

FLANGE FITTING

(PROPEL MOTOR PORTS)

8шт.

23

AT105922

KIT

(LINDE PISTON PROPEL MOTOR CONVERSION) (PARTS LIST AND ART ON FOLLOWING PAGES)

1шт.
