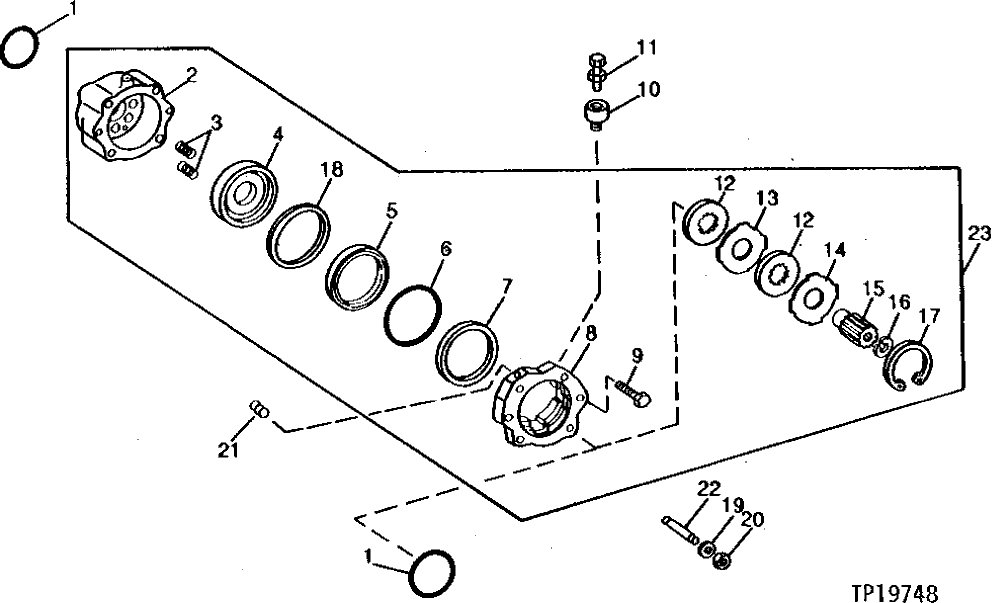

Запчасти John Deere 90C 16 - BRAKE 260 - AXLES AND SUSPENSION SYSTEMS 2

1

R55453

O-RING

4шт.

2

T63825

HOUSING

(MARKED T63825) (SUB FOR AT60809)

1шт.

3

T40977

SPRING

8шт.

4

T40975

PISTON

1шт.

5

AT112460

SEAL

(SUB FOR AT81800)

1шт.

6

T70176

O-RING

1шт.

7

U44590

BACK-UP RING

1шт.

8

T77035

FLANGE

1шт.

9

19H2922

SCREW

3/8" X 1-1/4"

2шт.

10

15H639

PIPE BUSHING

1/8"

1шт.

11

E14814

PRESSURE RELIEF FITTING

(SUB FOR AT70481)

1шт.

12

T114856

BRAKE DISK

(SUB FOR T46153)

7шт.

13

T59495

BRAKE DISK

7шт.

14

T59496

BRAKE DISK

1шт.

15

T40976

SHAFT

1шт.

16

T14445

SNAP RING

1шт.

17

T40980

SNAP RING

1шт.

18

T107595

BACK-UP RING

(SUB FOR T80940)

1шт.

19

N31767

WASHER

4шт.

20

K40014

LOCK NUT

1/2", (SUB FOR U16721)

8шт.

21

15H604

PIPE PLUG

1/4"

1шт.

22

T81431

STUD

(SUB FOR T67715)

8шт.

23

AT81863

BRAKE

1шт.
