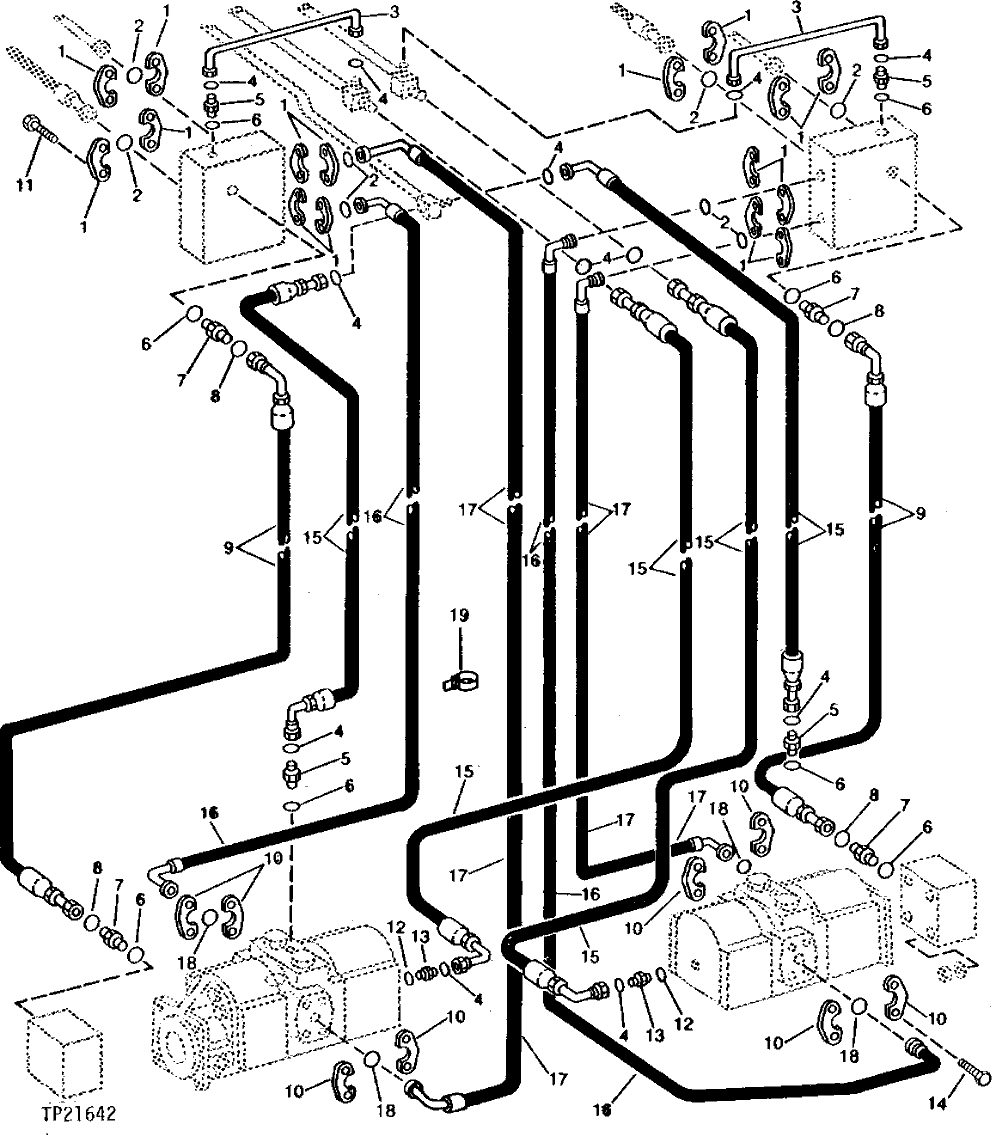

Запчасти John Deere 90C 12 - PROPEL MOTOR TO COUNTERBALANCE VALVE HOSES AND LINES 260 - AXLES AND SUSPENSION SYSTEMS 2

1

R29867

FLANGE FITTING

16шт.

2

N131838

O-RING

8шт.

3

AT79989

OIL LINE

2шт.

4

T77857

O-RING

12шт.

5

38H1173

ADAPTER FITTING

4шт.

6

T70177

O-RING

8шт.

7

38H1160

ADAPTER FITTING

4шт.

8

T77613

O-RING

4шт.

9

AT82378

HYDRAULIC HOSE - FABRICATE

11/16" X 840 MM (33") X 11/16", (SUB FOR AT79990)

2шт.

10

X51H-24

FLANGE FITTING

(SUB FOR R29422 OR T47649) CLAMPS

8шт.

11

19H3104

CAP SCREW

7/16" X 1-1/4"

32шт.

12

R47150

O-RING

2шт.

13

38H1161

ADAPTER FITTING

2шт.

14

19H3579

CAP SCREW

1/2" X 1-3/8"

16шт.

15

AT170474

HYDRAULIC HOSE - FABRICATE

13/16" X 851 MM (33-1/2") X 13/16", (SUB FOR AT83275)

4шт.

16

AT47150

HYDRAULIC HOSE

1-1/2" X 864 MM (34") X 1-1/4", (9-1/2' UNDERCARRIAGE)

2шт.

AT47154

HYDRAULIC HOSE

1-1/4" X 614 MM (24-1/4") X 1-1/2", (LOWER L.H.) (8' UNDERCARRIAGE)

1шт.

AT47151

HYDRAULIC HOSE

1-1/2" X 672 MM (26-1/2") X 1-1/4", (UPPER R.H.) (8' UNDERCARRIAGE)

1шт.

17

AT47149

HYDRAULIC HOSE

1-1/2" X 864 MM (34") X 1-1/4", (9-1/2' UNDERCARRIAGE)

2шт.

AT47152

HYDRAULIC HOSE - FABRICATE

1-1/4" X 614 MM (24-1/4") X 1-1/2", (LOWER R.H.) (8' UNDERCARRIAGE)

1шт.

AT47153

HYDRAULIC HOSE

1-1/2" X 672 MM (26-1/2") X 1-1/4", (UPPER L.H.) (8' UNDERCARRIAGE)

1шт.

18

T72221

O-RING

(SUB FOR T34248)

4шт.

19

CLAMP

( AT41775, NO LONGER USED)

2шт.
