Запчасти John Deere 90C 11 - CONTROL VALVE TO ROTARY MANIFOLD HOSES AND FITTINGS 260 - AXLES AND SUSPENSION SYSTEMS 2

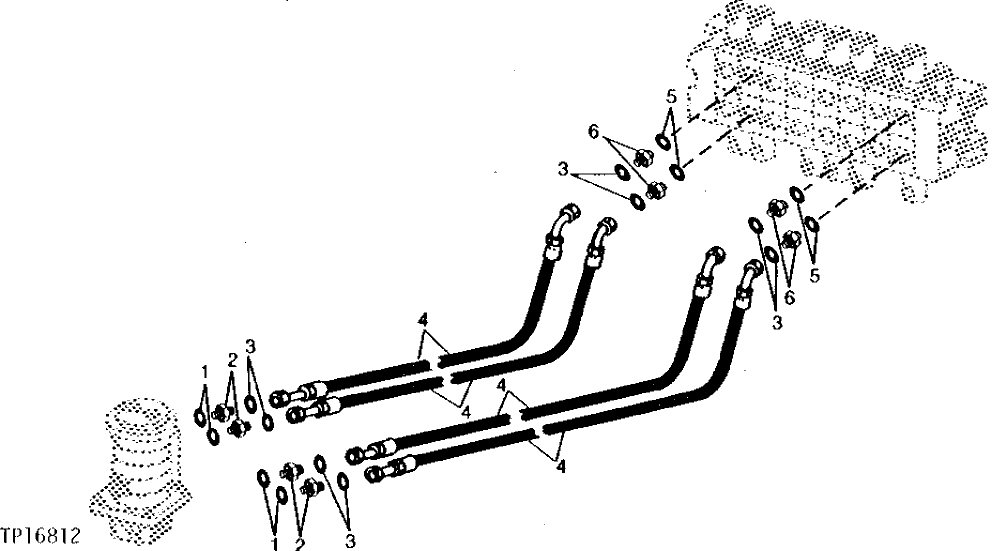

Схема запчастей John Deere 90C - 11 - CONTROL VALVE TO ROTARY MANIFOLD HOSES AND FITTINGS 260 - AXLES AND SUSPENSION SYSTEMS 2

Артикул

Название

Примечание

Количество

1

R29936

O-RING

4шт.

2

38H1164

ADAPTER FITTING

4шт.

3

T76938

O-RING

8шт.

4

AT78923

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 210 MM (47-3/4") X 1-7/16", (L.H. TRACK SECTION)

2шт.

AT101735

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 250 MM (49-1/4") X 1-7/16", (R.H. TRACK SECTION) (SUB FOR AT78923, THIS APPLICATION)

2шт.

5

U12547

O-RING

4шт.

6

38H1179

ADAPTER FITTING

4шт.

Выбрано товаров: 7
