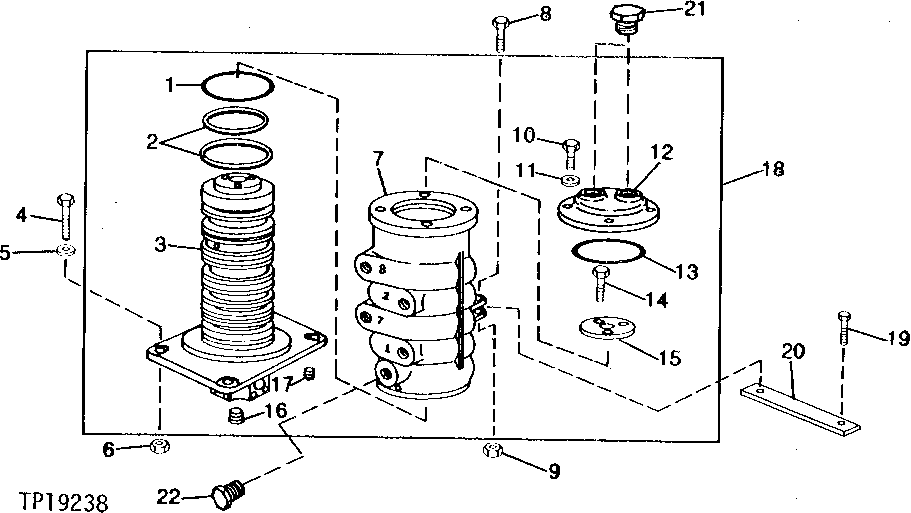

Запчасти John Deere 90C 10 - ROTARY MANIFOLD 260 - AXLES AND SUSPENSION SYSTEMS 2

1

A5598R

O-RING

1шт.

2

AT46130

SEAL KIT

7шт.

AT46130

SEAL KIT

7шт.

3

SPINDLE

( T71753 AND T81100 NO LONGER AVAILABLE)

1шт.

4

19H2473

CAP SCREW

1/2" X 1-3/4"

4шт.

5

24H1341

WASHER

17/32" X 15/16" X 0.060"

4шт.

6

14H1040

NUT

1/2"

4шт.

7

T71752

BARREL

1шт.

8

19H1820

CAP SCREW

1/2" X 3"

1шт.

9

K40014

LOCK NUT

1шт.

10

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

11

24H1652

WASHER

13/32" X 11/16" X 7/64", CAP TO BARREL SCREWS

4шт.

12

T70239

CAP

1шт.

13

T38489

O-RING

1шт.

14

19H2284

CAP SCREW

3/8" X 7/8"

3шт.

15

T40340

WASHER

1шт.

16

15H690

PIPE PLUG

3/4"

4шт.

17

15H275

PIPE PLUG

1/4"

1шт.

18

MANIFOLD

(SUB FOR AT79696) ( AT21370 NO LONGER AVAILABLE, ORDER COMPONENTS)

1шт.

19

19H2898

CAP SCREW

1/2" X 1-1/4"

1шт.

20

T79304

STRAP

1шт.

21

38H1147

FITTING PLUG

(NO UNDERCARRIAGE)

2шт.

22

38H1146

FITTING PLUG

(NO UNDERCARRIAGE)

1шт.
