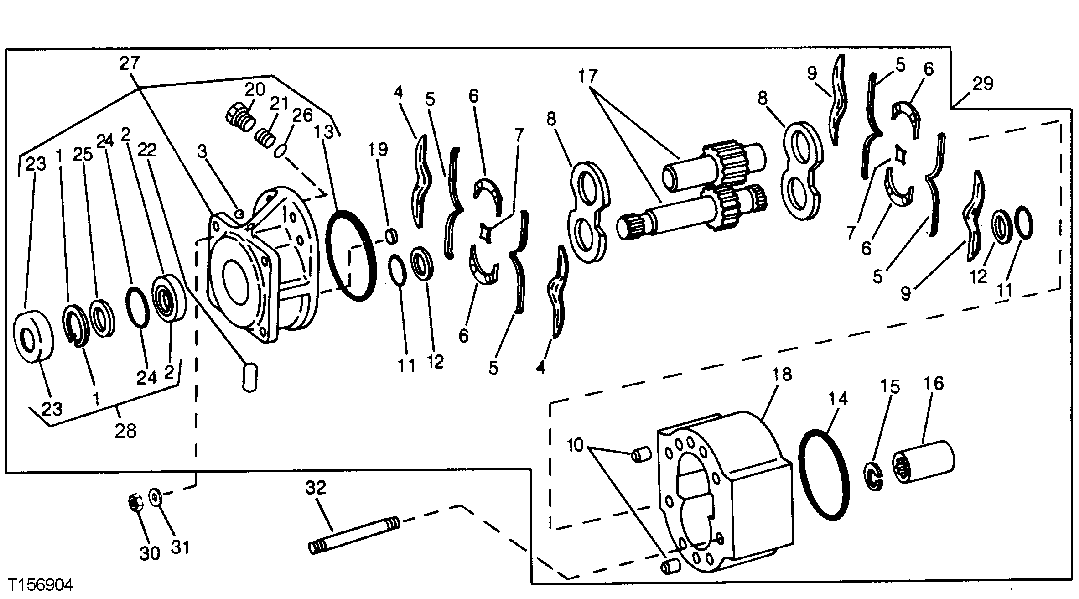

Запчасти John Deere 90C 2 - TRACK DRIVE MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

1

N51168

SNAP RING

1шт.

2

T74339

SEAL

(USED IN AT77816 FLANGE KIT)

1шт.

T74339

SEAL

(USED IN AT72022 SEAL KIT)

2шт.

3

400R

BALL

3шт.

4

T74341

PLATE

2шт.

5

T46532

ISOLATOR

4шт.

6

T61324

SEPARATOR

END

4шт.

7

T61325

SEPARATOR

CENTER

2шт.

8

T74344

PLATE

2шт.

9

T74342

PLATE

2шт.

10

U44854

DOWEL PIN

4шт.

11

T61327

O-RING

4шт.

12

T61326

BACK-UP RING

BACKUP

4шт.

13

T61267

O-RING

(USE WHEN O-RING GROOVE IS LESS THAN 1.52 MM (.06") DEEP)

1шт.

T60657

O-RING

(USE WHEN O-RING GROOVE IS MORE THAN 1.52 MM (.06") DEEP)

1шт.

14

T42742

O-RING

1шт.

15

T23694

SNAP RING

1шт.

16

T42740

SPLINED COUPLING

SPLINE

1шт.

17

GEAR

(SUB AT80409)

1шт.

18

HOUSING

(SUB AT80409)

1шт.

19

T48992

PIN

2шт.

20

T78422

ORIFICE

2шт.

21

T78424

COMPRESSION SPRING

2шт.

22

T74352

PRESSURE RELIEF VALVE

1/4"

ARшт.

T78423

PLUG

3/16"

ARшт.

23

T74339

SEAL

(USED IN AT77816 FLANGE KIT) (SUB FOR U44858, THIS APPLICATION)

1шт.

24

M44162

O-RING

(SUB FOR N157209)

1шт.

25

T74340

WASHER

1шт.

26

D2361R

BALL

2шт.

27

AT77816

FLANGE

1шт.

28

AT72022

SEAL KIT

(ALSO INCLUDES T61267 AND T60657) (DOES NOT INCLUDE T74340) (ALSO ORDER T74340)

1шт.

29

AT80409

KIT

1шт.

30

U44860

NUT

8шт.

31

U44865

WASHER

8шт.

32

T80144

ROD

8шт.
