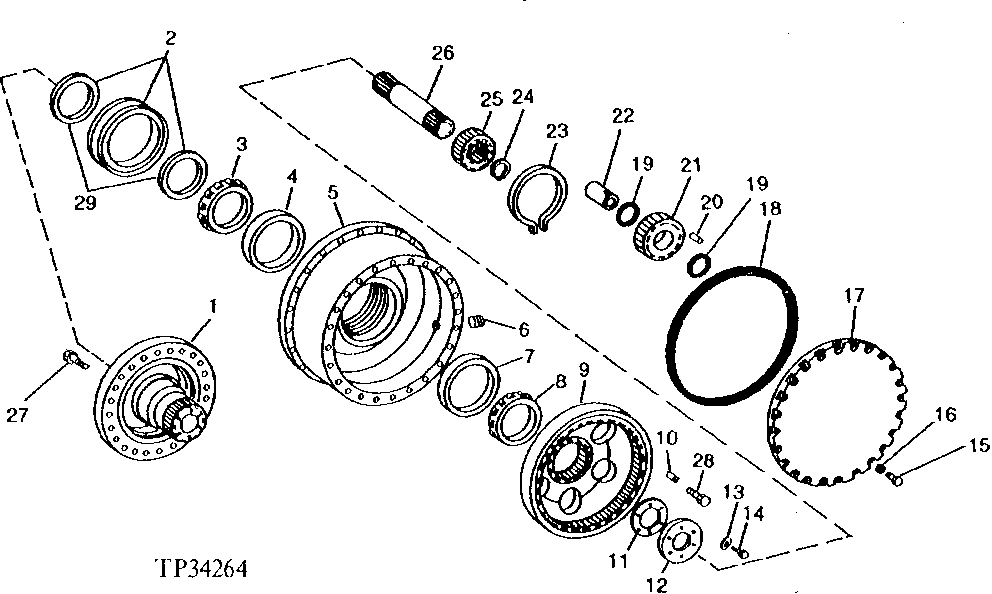

Запчасти John Deere 90C 4 - PLANETARY DRIVE 250 - AXLES AND SUSPENSION SYSTEMS 2

1

T39430

HOUSING

1шт.

2

AT112491

SEAL

(SUB FOR AT38194)

1шт.

3

JD9050

BEARING CONE

1шт.

4

JD9115

BEARING CUP

1шт.

5

T71025

HUB

1шт.

6

U17027

FITTING

1шт.

7

JD9129

BEARING CUP

1шт.

8

JD9072

BEARING CONE

1шт.

9

AT38193

PLANET PINION CARRIER

INCLUDES R76845 RING GEAR

1шт.

R76845

PINION

PLANET PINION CARRIER RING GEAR

1шт.

10

R65499

DOWEL PIN

6шт.

11

SHIM

(A) .020" ( T39435 NO LONGER AVAILABLE)

ARшт.

SHIM

(A) .007" ( T39436 NO LONGER AVAILABLE)

ARшт.

SHIM

(A) .005" ( T39437 NO LONGER AVAILABLE)

ARшт.

12

T39434

RETAINER

1шт.

13

T19583

WASHER

(SUB FOR (3) T39438, THIS APPLICATION)

6шт.

14

19H2964

CAP SCREW

HS, SAE 8, 7/16" X 1-1/8"

6шт.

15

19H3579

CAP SCREW

1/2" X 1-3/8"

24шт.

16

24H1338

WASHER

33/64" X 7/8" X 0.048"

24шт.

17

T39426

PLANET PINION CARRIER

1шт.

18

T39429

O-RING

1шт.

19

R33022

THRUST WASHER

6шт.

20

R33028

NEEDLE ROLLER

99шт.

21

R33004

PINION

(21 TEETH)

3шт.

22

R63112

PINION SHAFT

3шт.

23

R33029

SNAP RING

1шт.

24

T39433

SNAP RING

2шт.

25

T39432

SUN GEAR

(15 TEETH)

1шт.

26

T108144

SHAFT

(SUB FOR T74979)

1шт.

27

19H2969

CAP SCREW

HS, SAE 8, 5/8" X 3-1/2"

24шт.

28

15H275

PIPE PLUG

1/4"

6шт.

29

AT112491

SEAL

(SUB FOR AT43221) CONTAINS (2) O-RINGS

1шт.
