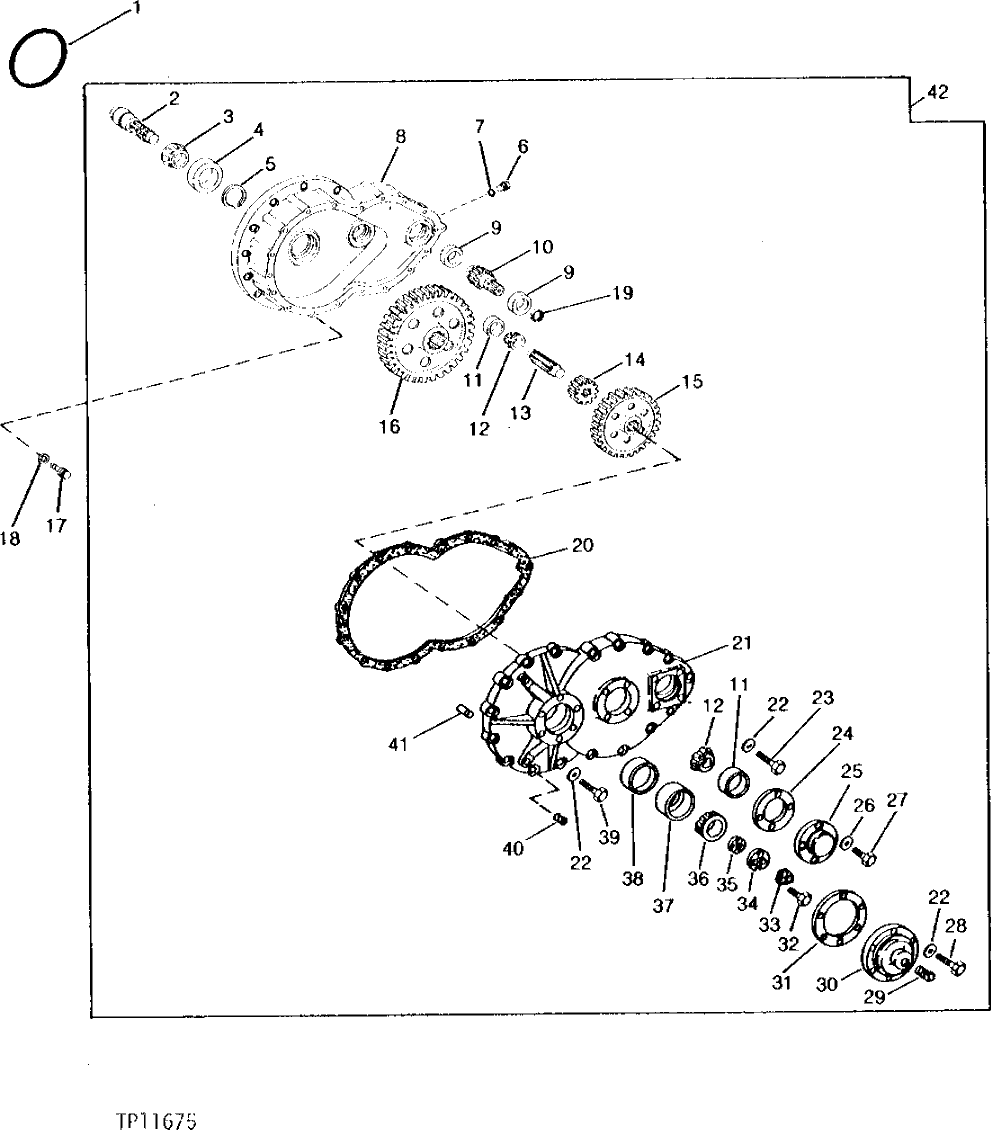

Запчасти John Deere 90C 2 - TRACK DRIVE GEAR CASE, COVER AND GEARS 250 - AXLES AND SUSPENSION SYSTEMS 2

1

U42029

O-RING

1шт.

2

T74978

SHAFT

1шт.

3

JD9075

BEARING CONE

1шт.

4

JD9132

BEARING CUP

1шт.

5

F3669R

SNAP RING

1шт.

6

R27094

DRAIN PLUG

1шт.

7

R26286

O-RING

1шт.

8

T39401

GEAR CASE

(USE IF AVAILABLE)

1шт.

9

JD7682

BALL BEARING

2шт.

10

T47029

GEAR

(12 TEETH)

1шт.

11

JD8223

BEARING CUP

2шт.

12

JD9027

BEARING CONE

2шт.

13

T39405

SHAFT

1шт.

14

T24862

PINION

(13 TEETH)

1шт.

15

T40533

GEAR

(45 TEETH)

1шт.

16

T29461

GEAR

(56 TEETH)

1шт.

17

T40256

SCREW

9шт.

18

T76630

WASHER

9шт.

19

AT40603

SEAL

1шт.

20

T211780

GASKET

(SUB FOR T39403)

1шт.

21

T72157

COVER

1шт.

22

24H1227

WASHER

17/32" X 13/16" X 0.060"

23шт.

23

19H2965

CAP SCREW

1/2" X 3-1/2"

7шт.

19H3550

CAP SCREW

HS, SAE 8, 1/2" X 4"

2шт.

24

SHIM

(A) .191 MM (.0075")

ARшт.

SHIM

(A) .13 MM (.005")

ARшт.

SHIM

(A) .508 MM (.020")

ARшт.

25

T39408

BEARING HOUSING W/O BEARING

1шт.

26

24H1301

WASHER

13/32" X 9/16" X 0.065"

4шт.

27

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

28

19H2898

CAP SCREW

HS, SAE 8, 1/2" X 1-1/4"

6шт.

29

15H690

PIPE PLUG

3/4"

1шт.

30

T39420

BEARING HOUSING W/O BEARING

1шт.

31

T39421

GASKET

1шт.

32

19H3617

CAP SCREW

7/16" X 1-1/8"

3шт.

33

T19583

WASHER

1шт.

34

T39415

WASHER

1шт.

35

SHIM

(B) .508 MM (.020") ( T39416 NO LONGER AVAILABLE)

ARшт.

SHIM

(B) .191 MM (.0075") ( T39417 NO LONGER AVAILABLE)

ARшт.

SHIM

(B) .13 MM (.005") ( T39418 NO LONGER AVAILABLE)

ARшт.

36

JD8941

BEARING CONE

1шт.

37

JD8255

BEARING CUP

1шт.

38

T41644

BUSHING

1шт.

39

19H2735

CAP SCREW

1/2" X 2"

8шт.

40

T42914

FITTING

2шт.

15H562

PIPE PLUG

1"

2шт.

41

R26198

DOWEL PIN

2шт.

42

DRIVE

( AT72548 NO LONGER AVAILABLE, ORDER COMPONENTS)

1шт.
