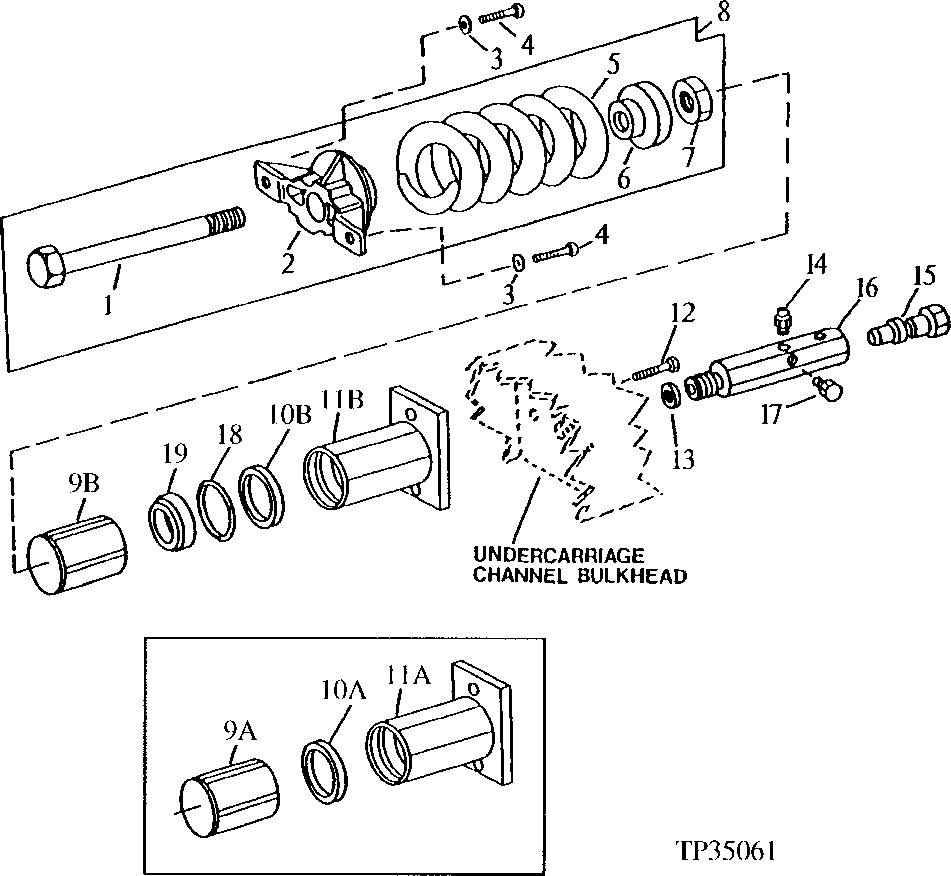

Запчасти John Deere 90C 3A - ADJUSTING CYLINDER AND IDLER SPRING ASSEMBLY 130 - TRACKS 1

1

T119925

BOLT

(SUB FOR T42679) (USE WITH AT47056)

1шт.

T123101

BOLT

(USE WITH AT125807)

1шт.

2

T42678

YOKE

1шт.

3

24M1589

WASHER

17 X 30 X 3 MM 5/8"

2шт.

4

19M7489

CAP SCREW

M16 X 45

2шт.

5

T119926

EXTENSION SPRING

(SUB FOR T44023)

1шт.

6

T42680

CAP

(USE WITH AT47056)

1шт.

T123102

CAP

(USE WITH AT125807)

1шт.

7

T42682

NUT

(USE WITH AT47056)

1шт.

T124145

NUT

(USE WITH AT125807)

1шт.

8

SPRING ASSEMBLY

( AT47056 NO LONGER AVAILABLE) (SUB AT125807 IF AVAILABLE)

1шт.

9A

PISTON

( T82904 NO LONGER AVAILABLE) (SUB T115214, T115215, T139457, T115284 AND (3) 19M7493)

1шт.

9B

T115214

PIN

1шт.

10A

T42674

SEAL

(USE IF AVAILABLE) (SUB T165540)

1шт.

T165540

SEAL

1шт.

10B

T115215

SEAL

1шт.

11A

BARREL

( T82905 NO LONGER AVAILABLE) (SUB AT125469, T115215, T139457, T115284 AND (3) 19M7493)

1шт.

11B

AT125469

BARREL

1шт.

12

19M7493

CAP SCREW

M12 X 40, (SUB FOR 19M7303, THIS APPLICATION)

2шт.

13

AT48016

SEAL

1шт.

14

JD10510

LUBRICATION FITTING

(SUB FOR JD7797)

1шт.

15

T115166

PRESSURE RELIEF VALVE

TRACK RELIEF, (SUB FOR AT48017)

1шт.

16

T115149

ADAPTER FITTING

1шт.

17

15H558

PIPE PLUG

1/8"

2шт.

18

T115284

BACK-UP RING

1шт.

19

T139457

SEAL

(SUB FOR T115216)

1шт.
