2 - CONTROL VALVE TO SWING MOTOR HOSES AND FITTINGS

Запчасти John Deere 90C 2 - CONTROL VALVE TO SWING MOTOR HOSES AND FITTINGS 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

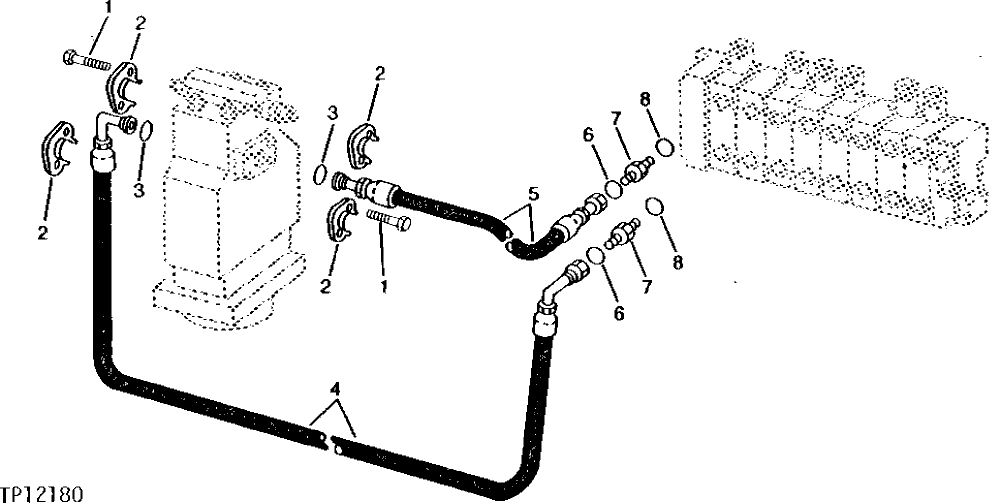

Схема запчастей John Deere 90C - 2 - CONTROL VALVE TO SWING MOTOR HOSES AND FITTINGS 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

19H3385

CAP SCREW

1/2" X 1-1/8"

8шт.

2

H61354

FLANGE FITTING

4шт.

3

T78313

O-RING

2шт.

4

AT78034

HYDRAULIC HOSE - FABRICATE

1шт.

5

AT78033

HYDRAULIC HOSE - FABRICATE

1шт.

6

T76938

O-RING

2шт.

7

38H1164

ADAPTER FITTING

2шт.

8

R29936

O-RING

2шт.
