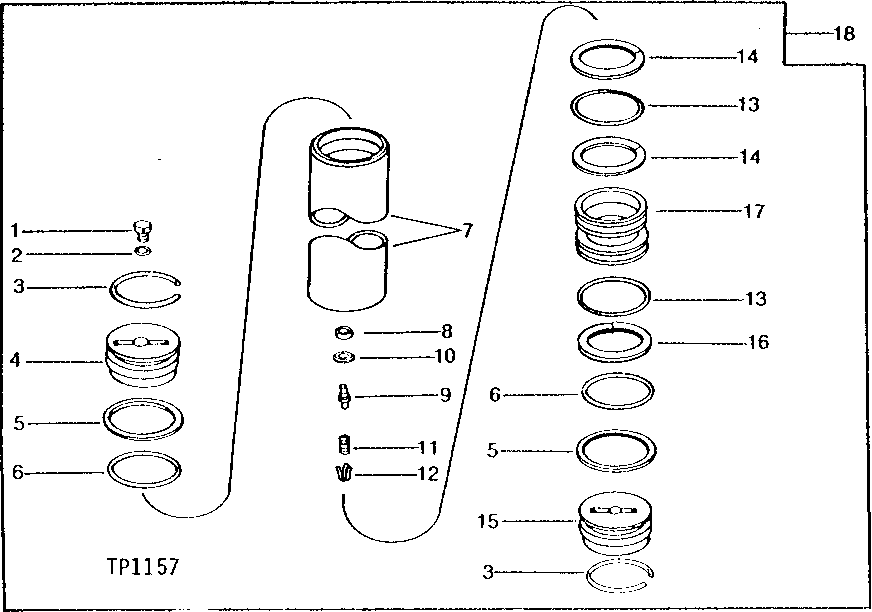

Запчасти John Deere 90C 39 - HYDRAULIC ACCUMULATOR 3360 - BACKHOE AND EXCAVATOR 33

1

R27094

DRAIN PLUG

1шт.

2

R26286

O-RING

1шт.

3

R78101

SNAP RING

2шт.

4

R48957

END

1шт.

R35684

BACK-UP RING

1шт.

5

R78823

BACK-UP RING

(SUB FOR R35684, THIS APPLICATION)

2шт.

6

R86192

O-RING

(SUB FOR U12331)

2шт.

7

R77866

HYDRAULIC CYLINDER BARREL

1шт.

8

R60038

PACKING

1шт.

9

R47085

VALVE

1шт.

10

R47087

WASHER

1шт.

11

R47086

SPRING

1шт.

12

R41877

GUIDE

1шт.

13

A4728R

O-RING

2шт.

14

L29015

BACK-UP RING

2шт.

15

R47912

CAP

1шт.

R35684

BACK-UP RING

1шт.

16

R27649

BACK-UP RING

1шт.

17

R57103

PISTON

1шт.

18

RE11966

ACCUMULATOR

(SUB RE29331) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)

1шт.
