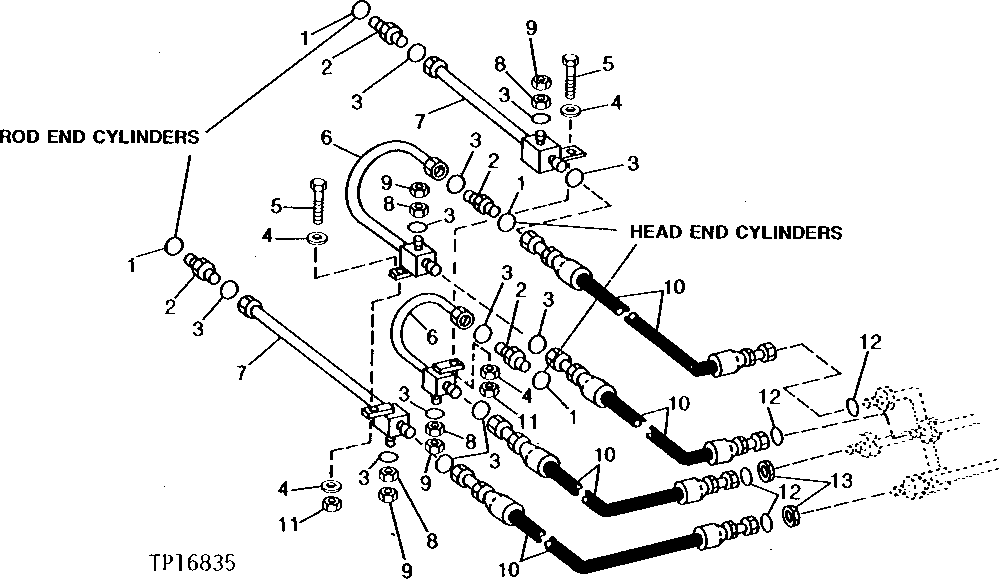

Запчасти John Deere 90C 38 - BOOM CYLINDER HOSES AND TUBES 3360 - BACKHOE AND EXCAVATOR 33

1

R29936

O-RING

4шт.

2

38H1194

ADAPTER FITTING

4шт.

3

T77858

O-RING

12шт.

4

24H603

WASHER

13/32" X 1" X 0.134"

4шт.

5

19H2732

CAP SCREW

3/8" X 2-3/4"

2шт.

6

AT78291

OIL LINE

HEAD END

2шт.

7

AT78292

OIL LINE

ROD END

2шт.

8

38H1356

TUBE NUT

(NOT USED, THIS APPLICATION) (SUB 38H1418)

4шт.

9

38H1418

FITTING

4шт.

10

AT78284

HYDRAULIC HOSE - FABRICATE

1-3/16" X 804 MM (31-3/4") X 1-7/16"

4шт.

11

14H812

NUT

3/8"

2шт.

12

T76938

O-RING

4шт.

13

T78715

NUT

2шт.
