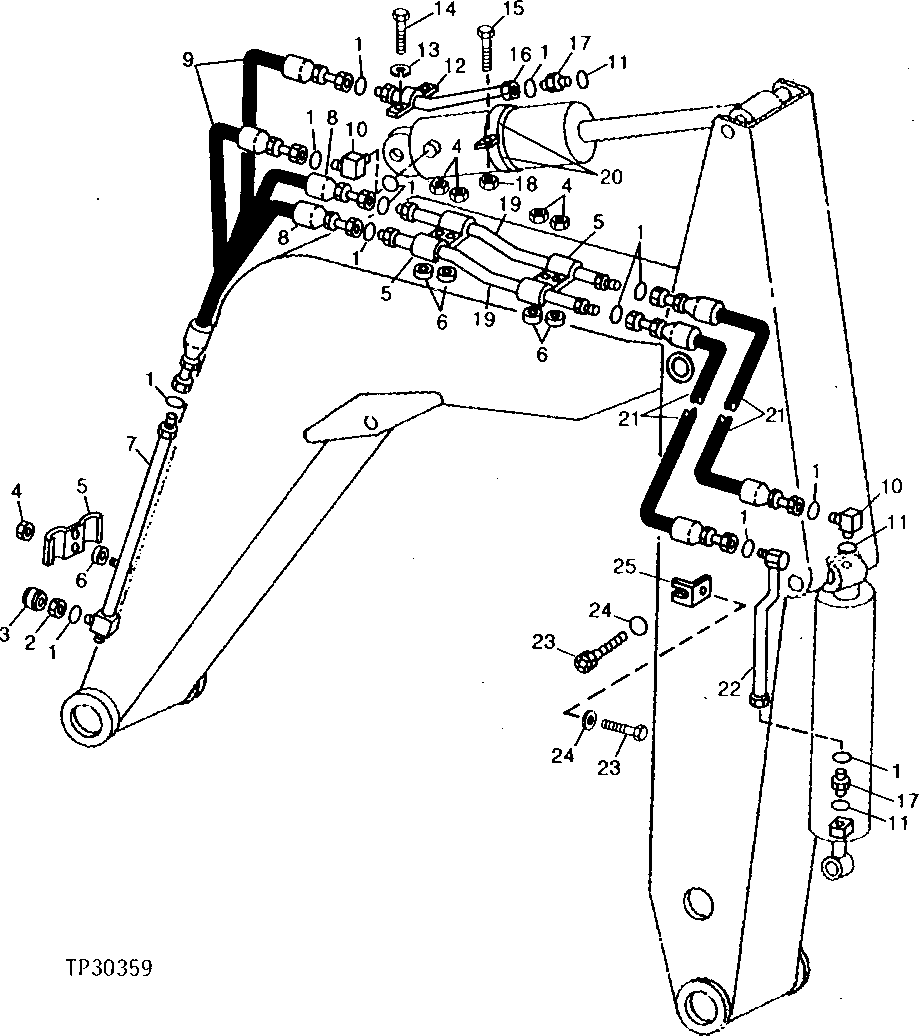

Запчасти John Deere 90C 36 - ARM AND BUCKET CYLINDER HOSES AND LINES 3360 - BACKHOE AND EXCAVATOR 33

1

T76938

O-RING

18шт.

2

38H1358

TUBE NUT

NO LONGER USED

4шт.

3

38H1419

FITTING

4шт.

38H1358

TUBE NUT

(SUB FOR 38H1116)

ARшт.

4

K40014

LOCK NUT

12шт.

5

T35868

CLAMP

12шт.

6

Z24862

SPACER

(SUB FOR L1730N)

10шт.

7

AT78294

OIL LINE

4шт.

8

AT78297

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 448 MM (57") X 1-7/16"

2шт.

9

AT78296

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 448 MM (57") X 1-7/16"

2шт.

10

38H1037

ELBOW FITTING

2шт.

11

R29936

O-RING

4шт.

12

T34957

CLAMP

1шт.

13

12H303

LOCK WASHER

5/16"

2шт.

14

19H1813

CAP SCREW

5/16" X 5/8", ONE PIECE, (SUB FOR U45179 AND R78950) (REFER TO KEY 18)

2шт.

15

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

16

AT78285

OIL LINE

1шт.

17

38H1164

ADAPTER FITTING

2шт.

18

14H812

NUT

3/8", ONE PIECE, (SUB FOR R78950 AND U45179) (REFER TO KEY 14)

2шт.

19

AT78295

OIL LINE

2шт.

20

T35726

CLAMP

2шт.

21

AT78298

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 118 MM (44") X 1-7/16"

2шт.

22

AT78283

OIL LINE

1шт.

23

T22874

BOLT

2шт.

24

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

25

T38720

ANGLE

1шт.

28H1576

BUSHING

0.824" X 1.050" X 7/8"

2шт.
