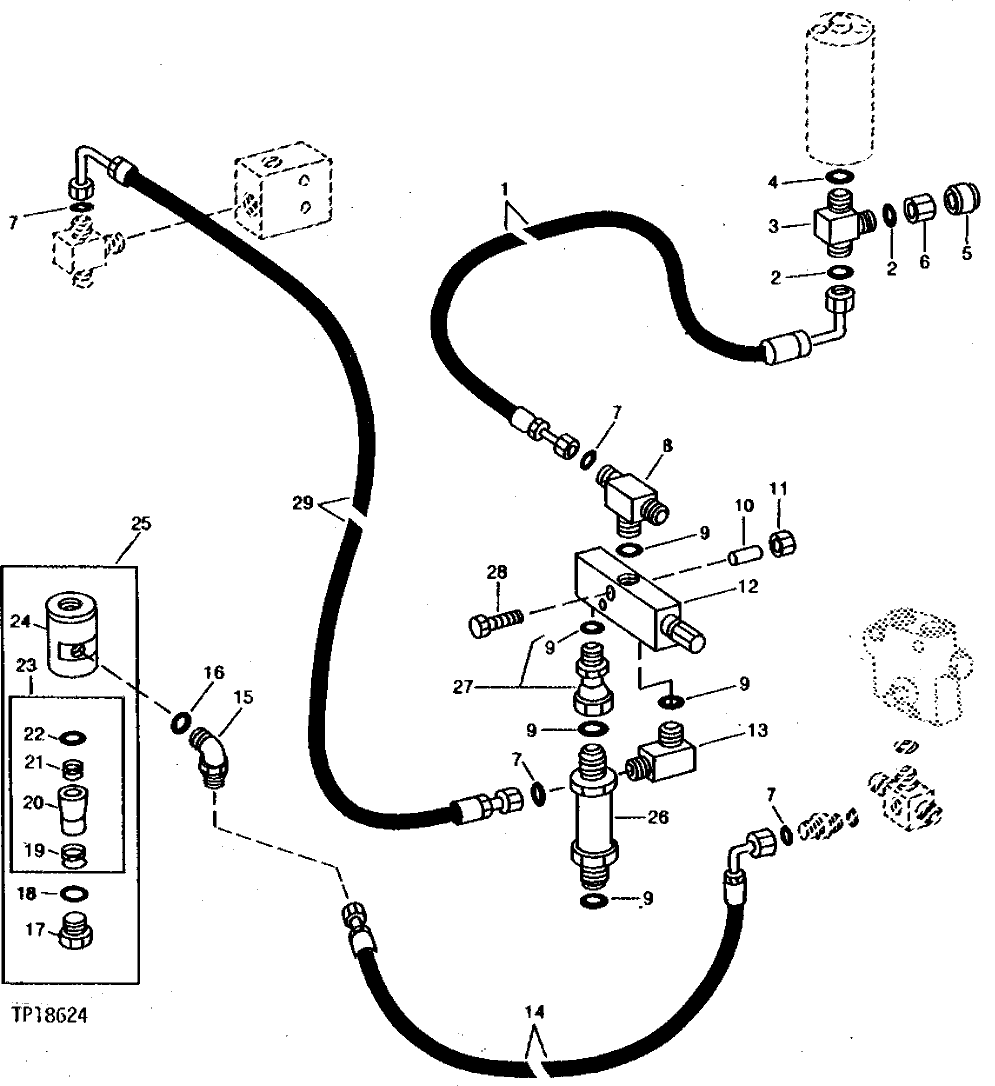

Запчасти John Deere 90C 30 - PILOT CONTROL HOSES, PRESSURE REDUCING VALVE AND CHECK VALVE 3360 - BACKHOE AND EXCAVATOR 33

1

AT79568

HYDRAULIC HOSE - FABRICATE

11/16" X 813 MM (32") X 13/16"

1шт.

2

T77857

O-RING

2шт.

3

38H1024

TEE FITTING

1шт.

4

R47150

O-RING

1шт.

5

38H1416

FITTING

1шт.

6

38H1354

TUBE NUT

(SUB 38H1416)

1шт.

7

T77613

O-RING

5шт.

8

38H1016

TEE FITTING

1шт.

9

T70177

O-RING

5шт.

10

28H1514

SPACER

0.364" X 0.540" X 9/16"

2шт.

11

14H786

NUT

1/4"

2шт.

12

AT68904

HYDRAULIC PRESSURE VALVE

(PRESSURE REDUCING)

1шт.

13

38H1004

ELBOW FITTING

1шт.

14

AT79567

HYDRAULIC HOSE - FABRICATE

11/16" X 290 MM (11-1/2") X 11/16"

1шт.

15

AT35121

ELBOW FITTING

1шт.

16

R26448

O-RING

1шт.

17

T114718

FITTING PLUG

(SUB FOR T107038)

1шт.

18

R29936

O-RING

1шт.

19

SPRING

(SUB AT105419)

1шт.

20

FILTER ELEMENT

(SUB AT105419)

1шт.

21

SPRING

(SUB AT105419)

1шт.

22

O-RING

(SUB AT105419)

1шт.

23

AT105419

KIT

1шт.

24

HOUSING

(SUB AT115276)

1шт.

25

AT115276

HYDRAULIC FILTER

(SUB FOR AT71081 AND AT105480)

1шт.

26

AT81867

CHECK VALVE

(ALSO ORDER 38H1067)

1шт.

27

38H1067

ADAPTER FITTING

(ALSO ORDER AT81867)

1шт.

28

19H2333

CAP SCREW

1/4" X 2-1/4"

2шт.

29

AT81931

HYDRAULIC HOSE - FABRICATE

11/16" X 515 MM (20-1/4") X 11/16", (SUB FOR AT79570 AND AT83751)

1шт.
