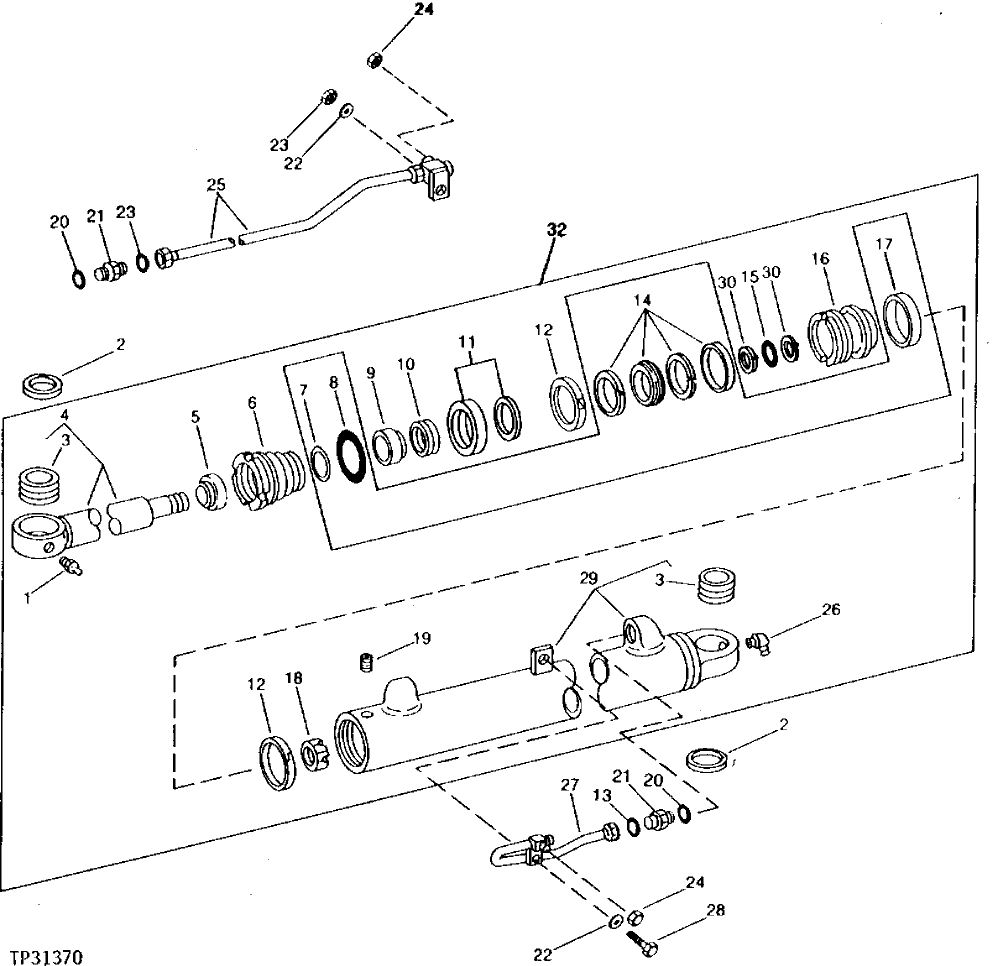

Запчасти John Deere 90C 17A - REPLACEMENT BOOM CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

JD7759

LUBRICATION FITTING

1/8"

1шт.

2

U43779

WASHER

6шт.

3

U43784

BUSHING

2шт.

4

RE21396

HYDRAULIC CYLINDER ROD

1шт.

5

RE21398

SEAL

(K)

1шт.

6

R82411

GUIDE

1шт.

7

R79177

BACK-UP RING

(SUB FOR T38490, THIS APPLICATION)

1шт.

8

T38489

O-RING

1шт.

9

RE21397

SEAL

(K)

1шт.

10

R82412

WEAR RING

(K)

1шт.

11

RE21399

SEAL

(K)

1шт.

12

T34515

PISTON RING

2шт.

13

T77858

O-RING

2шт.

14

RE11910

SEAL

1шт.

15

U10289

O-RING

(K)

1шт.

16

R81107

PISTON

1шт.

17

U44508

WEAR RING

1шт.

18

U10750

LOCK NUT

1шт.

19

22H1077

SET SCREW

1/4" X 5/16"

1шт.

20

R29936

O-RING

4шт.

21

38H1194

ADAPTER FITTING

2шт.

22

24H1308

WASHER

13/32" X 1" X 0.134"

2шт.

23

14H812

NUT

3/8"

1шт.

24

T29439

FITTING

2шт.

25

AT84148

OIL LINE

1шт.

26

JD7763

LUBRICATION FITTING

90°, 1/8"

1шт.

27

AT84147

OIL LINE

1шт.

28

19H2732

CAP SCREW

3/8" X 2-3/4"

1шт.

29

RE19057

HYDRAULIC CYLINDER BARREL

1шт.

30

R78391

BACK-UP RING

(K) (SUB FOR T25327, THIS APPLICATION)

2шт.

31

RE15905

HYDRAULIC CYLINDER KIT

1шт.

32

RE21394

HYDRAULIC CYLINDER

1шт.
