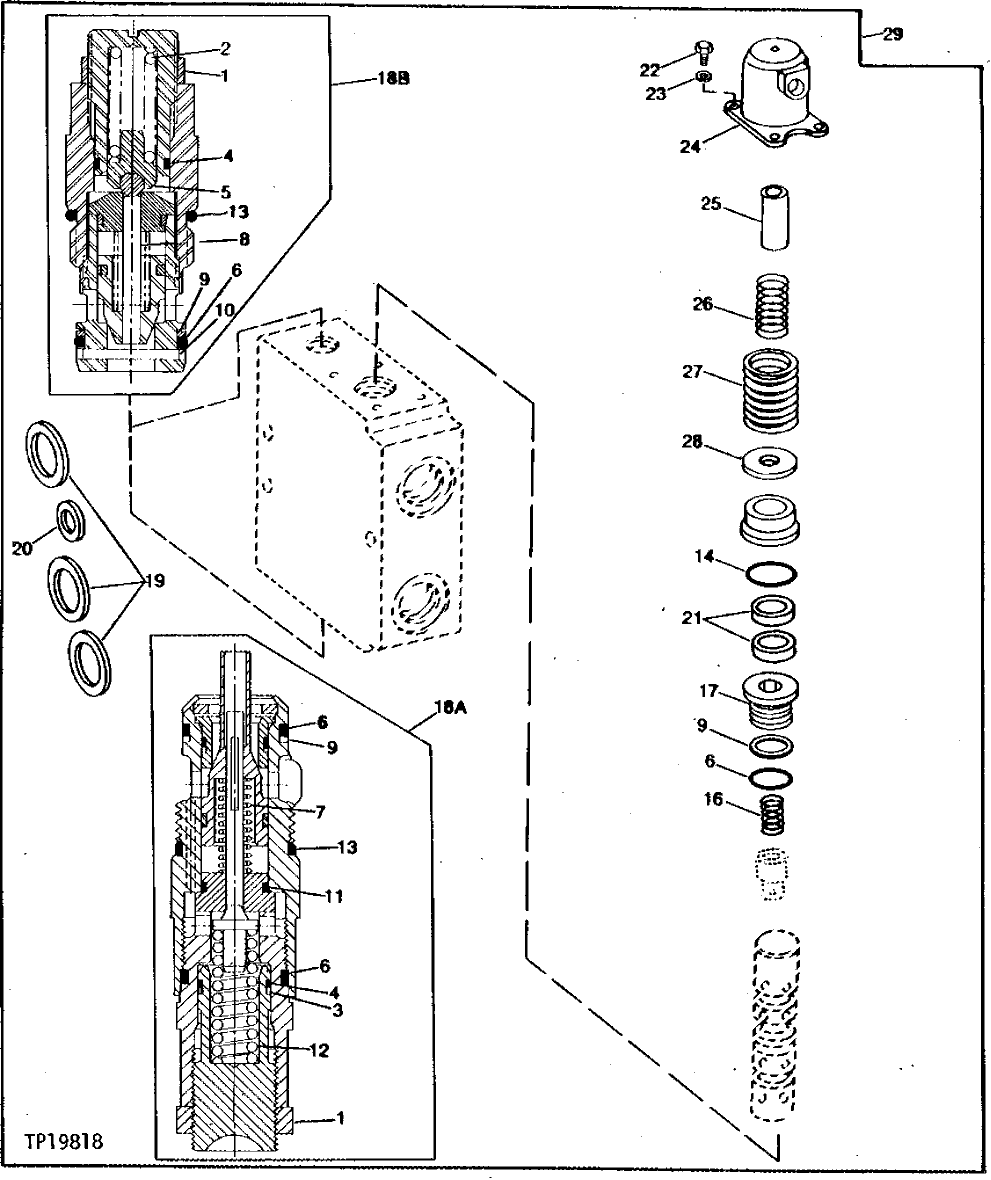

Запчасти John Deere 90C 6 - ARM AND BUCKET VALVE 3360 - BACKHOE AND EXCAVATOR 33

1

LOCK NUT

( T81250 NO LONGER AVAILABLE)

2шт.

2

EXTENSION SPRING

(SUB AT112534)

2шт.

3

T81247

BACK-UP RING

2шт.

4

H63283

O-RING

2шт.

5

POPPET

(SUB AT112534)

2шт.

6

U45857

O-RING

5шт.

7

SPRING

( T81248 NO LONGER AVAILABLE)

2шт.

8

DRAWER SLIDE

(SUB AT112534)

2шт.

9

U45858

BACK-UP RING

3шт.

10

34H233

SPRING PIN

3/32" X 7/8"

2шт.

11

R45186

O-RING

2шт.

12

SPRING

( T81249 NO LONGER AVAILABLE)

2шт.

13

P47908

O-RING

2шт.

14

U46335

O-RING

2шт.

15

T71901

PLATE

2шт.

16

U45851

SPRING

2шт.

17

T114585

BOLT

(SUB FOR T71898)

2шт.

18A

AT112534

PRESSURE RELIEF VALVE

(SUB AT112534) (SUB FOR AT82530) (3000 PSI)

2шт.

18B

AT112534

PRESSURE RELIEF VALVE

(3000 PSI)

2шт.

19

U45843

WASHER

3шт.

20

U45844

WASHER

1шт.

21

U45855

WASHER

4шт.

22

19H3554

SCREW

1/4" X 0.880"

8шт.

23

12H302

LOCK WASHER

1/4"

8шт.

24

T71899

END

2шт.

25

T71897

SLEEVE

2шт.

26

T71896

SPRING

2шт.

27

T81251

COMPRESSION SPRING

(SUB FOR T71895, THIS APPLICATION)

2шт.

28

T71900

PLATE

2шт.

29

AT114813

HYD ACTUATED CONTROL VALVE

(SUB FOR AT82531 AND AT83238) (USE IF AVAILABLE)

2шт.
