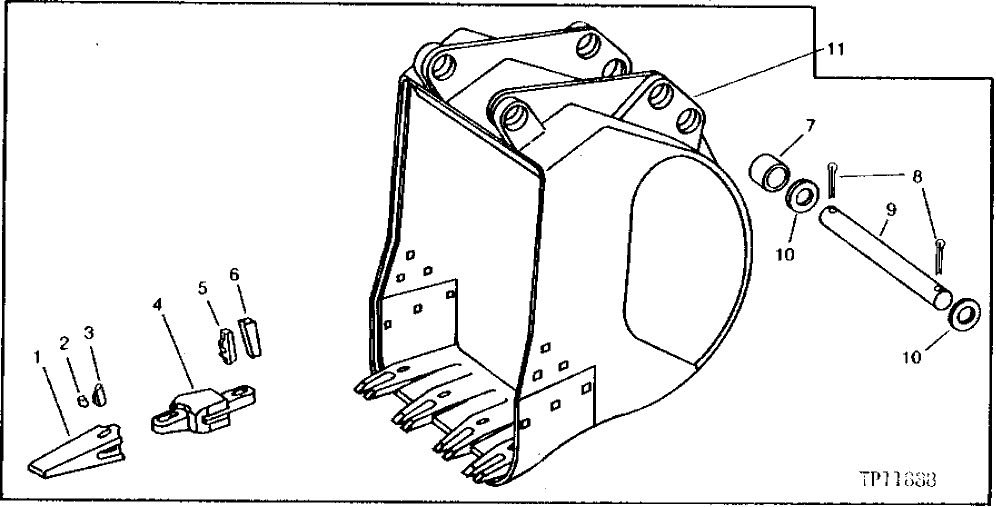

Запчасти John Deere 90C 4 - HEAVY-DUTY BUCKETS 3302 - BACKHOE AND EXCAVATOR 33

1

T35S

TOOTH

(SUB FOR T35516) (4 USED WITH 24" AND 29" BUCKETS, 5 USED WITH 35" BUCKET)

ARшт.

2

T3540LK

LOCK

(SUB FOR T33146) (4 USED WITH 24" AND 29" BUCKETS, 5 USED WITH 35" BUCKET)

ARшт.

3

T35PN

PIN FASTENER

(SUB FOR T35517) (4 USED WITH 24" AND 29" BUCKETS, 5 USED WITH 35" BUCKET)

ARшт.

4

EX119-35

BUCKET TOOTH ADAPTER

(SUB FOR T35515) (4 USED WITH 24" AND 29" BUCKETS, 5 USED WITH 35" BUCKET)

ARшт.

5

EX20SP

SPOOL

(SUB FOR T38818) FLUTED (4 USED WITH 24" AND 29" BUCKETS, 5 USED WITH 35" BUCKET)

ARшт.

6

EX20W1

WEDGE

(SUB FOR T38819) FLUTED, (4 USED WITH 24" AND 29" BUCKETS, 5 USED WITH 35" BUCKET) 18 MM (0.70")

ARшт.

EX20W3

GROOVE PIN

(SUB FOR T38817) FLUTED, (4 USED WITH 24" AND 29" BUCKETS, 5 USED WITH 35" BUCKET) 24 MM (0.94")

ARшт.

EX20W2

WEDGE

(SUB FOR T38816) FLUTED, 4 USED WITH 24" AND 29" BUCKETS, 5 USED WITH 35" BUCKET) 21 MM (0.82")

ARшт.

7

U45351

BUSHING

6шт.

8

11H277

COTTER PIN

1/2" X 4"

4шт.

9

U45205

PIN FASTENER

2шт.

10

U43779

WASHER

ARшт.

11

EXCAVATOR BUCKET

( AT34752 NO LONGER AVAILABLE)

1шт.

EXCAVATOR BUCKET

( AT34751 NO LONGER AVAILABLE)

1шт.

EXCAVATOR BUCKET

( AT34750 NO LONGER AVAILABLE)

1шт.
