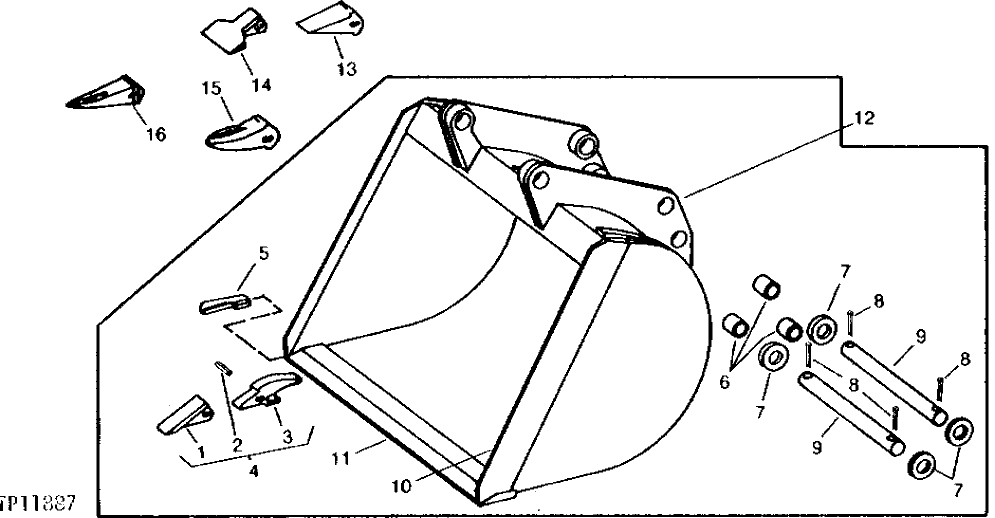

Запчасти John Deere 90C 3 - BUCKETS 3302 - BACKHOE AND EXCAVATOR 33

1

T252

TOOTH

(B) (6 USED WITH 48" BUCKET) (SUB FOR AT33513)

ARшт.

2

U45574

PIN

(B) FLEX (6 USED WITH 48" BUCKET)

ARшт.

3

T440X252

BUCKET TOOTH ADAPTER

(SUB FOR U45349)

1шт.

4

KIT

(B) (6 USED WITH 48" BUCKET) ( AT33512 NO LONGER AVAILABLE) (FURNISH COMPONENTS)

ARшт.

5

T34535

CORNER

R.H. (1 USED WITH 48" BUCKET)

ARшт.

T34536

CORNER

L.H. (1 USED WITH 48" BUCKET)

ARшт.

6

U45351

BUSHING

6шт.

7

U43779

WASHER

ARшт.

8

11H277

COTTER PIN

1/2" X 4"

4шт.

9

U45205

PIN FASTENER

2шт.

10

U45346

CUTTING EDGE

SIDE, R.H

1шт.

U45347

CUTTING EDGE

SIDE, L.H

1шт.

11

U45348

CUTTING EDGE

(48") BUCKET

1шт.

U45354

CUTTING EDGE

(60") BUCKET

1шт.

12

EXCAVATOR BUCKET

( AT34748 NO LONGER AVAILABLE)

1шт.

EXCAVATOR BUCKET

1 524 MM (60") ( AT34749 NO LONGER AVAILABLE)

1шт.

13

T250F

TOOTH

(6 USED WITH 48" BUCKET) (SUB FOR AT135911)

ARшт.

14

T252

TOOTH

(6 USED WITH 48" BUCKET) (SUB FOR T72583)

ARшт.

15

T252ST

TOOTH

(6 USED WITH 48" BUCKET) (SUB FOR T72581)

ARшт.

16

T252ST

TOOTH

(6 USED WITH 48" BUCKET) (SUB FOR T72582 AND T72581)

ARшт.
