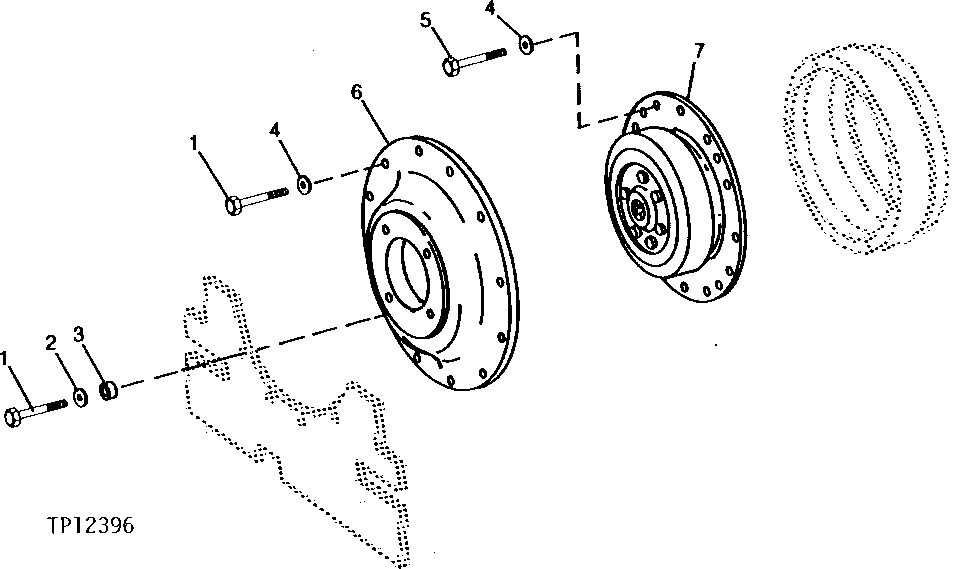

Запчасти John Deere 90C 10 - HYDRAULIC PUMP DRIVE AND MOUNTING PLATE 2160 - MAIN HYDRAULIC SYSTEM 21

1

19H3239

CAP SCREW

3/8" X 1-1/4"

12шт.

2

24M7296

WASHER

10.500 X 30 X 2.500 MM

4шт.

3

28H856

WASHER

0.423" X 0.675" X 3/16"

4шт.

4

12H304

LOCK WASHER

3/8"

16шт.

5

19H2284

CAP SCREW

3/8" X 7/8"

8шт.

6

T79132

HOUSING

1шт.

7

AT77685

DRIVE

1шт.

16H1342

RIVET

3/8" X 1-1/4", (HUB TO COUPLING)

6шт.
