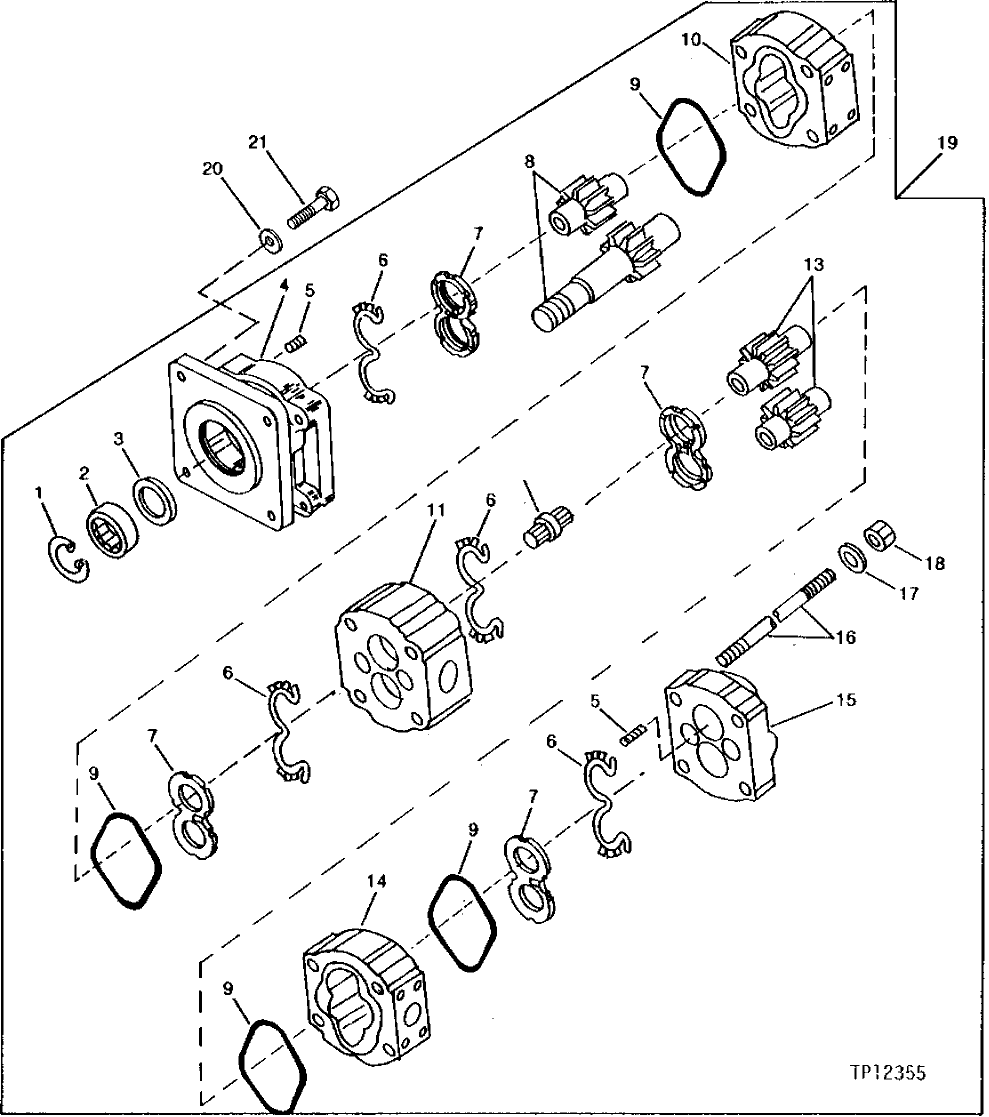

Запчасти John Deere 90C 6 - HYDRAULIC PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

1

N71921

SNAP RING

(SUB FOR T81111)

1шт.

2

JD10472

BALL BEARING

(SUB FOR AT82148)

1шт.

3

T81110

SEAL

(K) (K1)

1шт.

4

AT82147

COVER

1шт.

5

R78754

SET SCREW

2шт.

6

SEAL

(K) (K2) CHANNEL

4шт.

7

PLATE

(K) (K2)

4шт.

8

GEAR

(MATCHED SET) (SUB AT77687)

1шт.

9

GASKET

(K) (K1)

4шт.

10

HOUSING

(SUB AT77687)

1шт.

11

HOUSING

(SUB AT77687)

1шт.

12

SHAFT

(SUB AT77687)

1шт.

13

GEAR

(MATCHED SET) (SUB AT77687)

1шт.

14

HOUSING

(SUB AT77687)

1шт.

15

COVER

FRONT, (SUB AT77687)

1шт.

16

T42527

ROD

4шт.

17

24M7241

WASHER

17 X 34 X 4 MM, (SUB FOR T40728)

4шт.

18

14H1039

NUT

5/8"

4шт.

19

AT77687

HYDRAULIC PUMP

1шт.

20

T20168

WASHER

4шт.

21

19H2473

CAP SCREW

1/2" X 1-3/4"

4шт.
