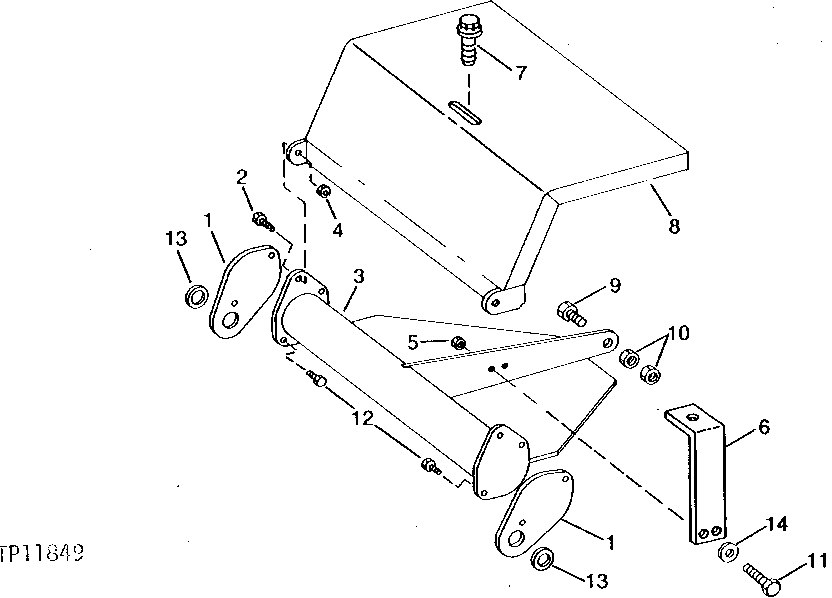

Запчасти John Deere 90C 1 - PROPEL MOTOR SHIELD 1913 - SHEET METAL AND STYLING 19

1

T39915

SUPPORT

2шт.

2

19H3244

CAP SCREW

5/8" X 2-1/4"

2шт.

3

AT39083

SHIELD

(9-1/2' UNDERCARRIAGE)

1шт.

AT38665

SHIELD

(8' UNDERCARRIAGE)

1шт.

4

K40015

LOCK NUT

2шт.

5

14H1040

NUT

1/2"

2шт.

6

T43699

ANGLE

1шт.

7

T56211

SCREW

(9-1/2' UNDERCARRIAGE)

1шт.

19H2473

CAP SCREW

1/2" X 1-3/4", (8' UNDERCARRIAGE)

1шт.

8

AT42572

COVER

(9-1/2' UNDERCARRAIGE)

1шт.

AT42571

COVER

(8' UNDERCARRIAGE)

1шт.

9

19H2695

CAP SCREW

1" X 3-1/4"

1шт.

10

14H806

NUT

1"

2шт.

11

19H2473

CAP SCREW

1/2" X 1-3/4", (SUB FOR 19H1777)

2шт.

12

19H1916

CAP SCREW

5/8" X 1"

4шт.

13

T46498

WASHER

ARшт.

14

24H1111

WASHER

17/32" X 1-1/16" X 0.090", (9-1/2' UNDERCARRIAGE)

2шт.

24H1162

WASHER

17/32" X 1-1/4" X 0.060", (8' UNDERCARRIAGE)

4шт.
