Запчасти John Deere 90C 2 - GAUGE PANEL 1676 - ELECTRICAL SYSTEMS 16

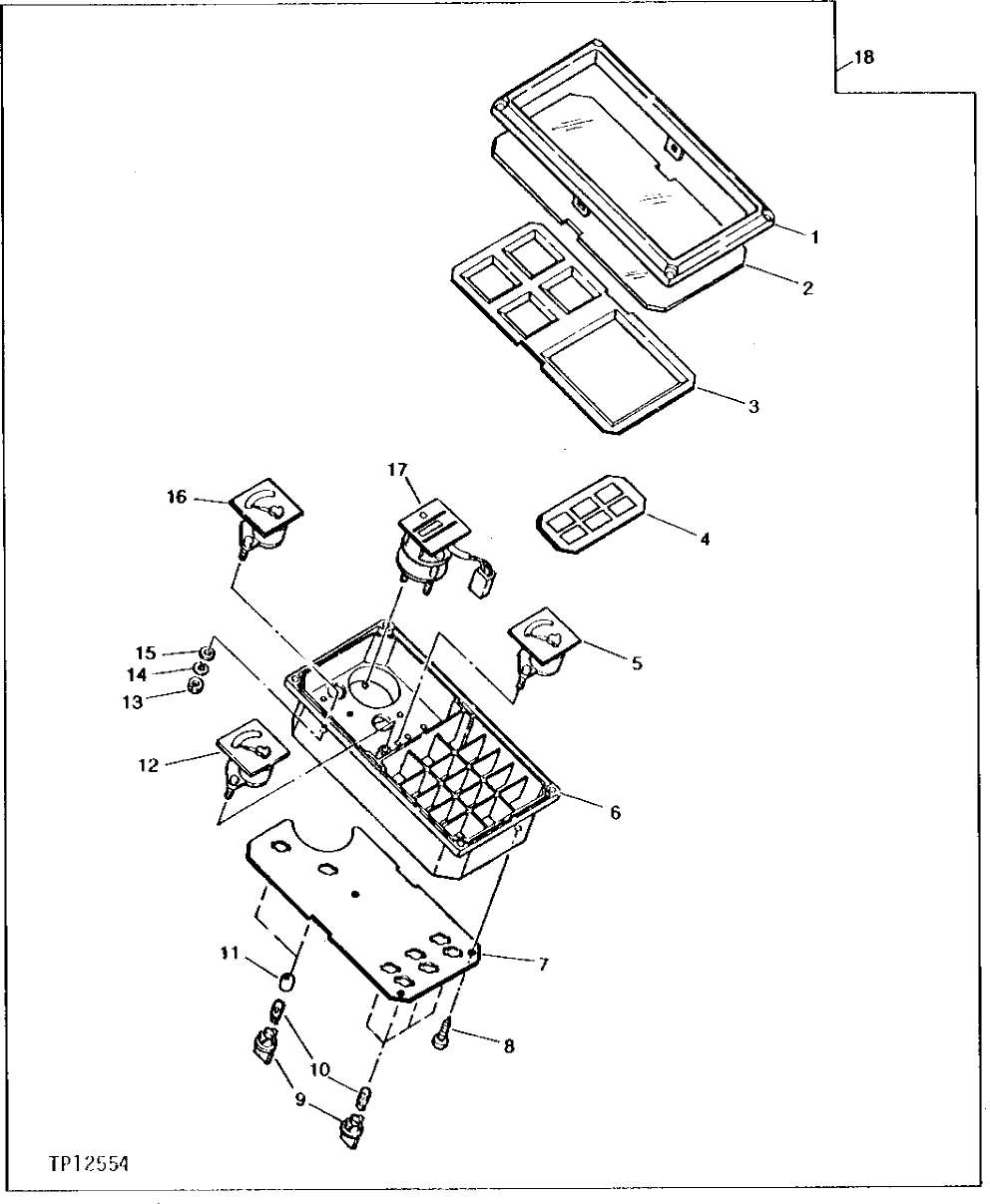

Схема запчастей John Deere 90C - 2 - GAUGE PANEL 1676 - ELECTRICAL SYSTEMS 16

Артикул

Название

Примечание

Количество

1

4149054

BEZEL

(SUB FOR TH100601)

1шт.

2

4149055

COVER

(SUB FOR TH100602)

1шт.

3

4149056

LENS

(SUB FOR TH100603)

1шт.

4

3030628

LENS

(SUB FOR T81272)

1шт.

5

4142554

LEVEL GAUGE

(SUB FOR TH100616) FUEL

1шт.

6

4149061

HOUSING

(SUB FOR TH100605)

1шт.

7

4178742

CIRCUIT BOARD

(SUB FOR AT82706)

1шт.

8

4149067

SCREW

(SUB FOR TH100610)

3шт.

9

4127783

SOCKET

(SUB FOR TH100607)

17шт.

10

57M7169

BULB

(SUB FOR TH100608)

17шт.

11

4149128

LENS

(SUB FOR TH100609)

2шт.

12

4178743

TEMPERATURE GAUGE

(SUB FOR AT82705) HYDRAULIC OIL TEMPERATURE

1шт.

13

14M7030

NUT

M3

15шт.

14

12H233

LOCK WASHER

3.175 MM, (SUB FOR TH100580) (SUB FOR 12M7048)

15шт.

15

24M7029

SHIM

0.500 MM, (SUB FOR TH100611)

15шт.

16

4142553

TEMPERATURE GAUGE

(SUB FOR TH100613)

1шт.

17

4142552

HOUR METER

(SUB FOR TH100614)

1шт.

18

PANEL

( AT82704 NO LONGER AVAIABLE, ORDER COMPONENTS)

1шт.

Выбрано товаров: 18
