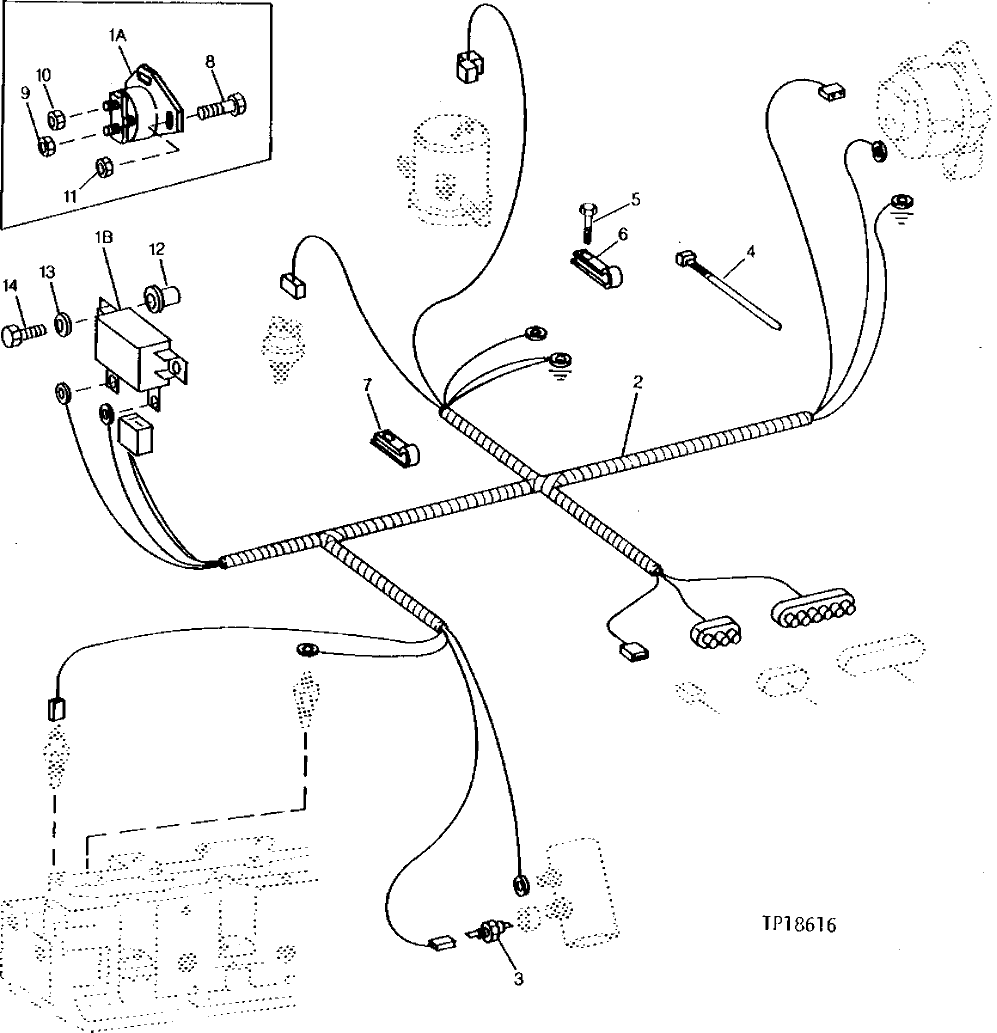

Запчасти John Deere 90C 6 - ENGINE WIRING HARNESS 1674 - ELECTRICAL SYSTEMS 16

1A

AT71088

RELAY

(SUB AT85258, (2) T82793, (2) 19H1948, (2) 24H1287 AND AT107364)

1шт.

1B

AT85258

RELAY

1шт.

21M7199

SCREW

M5 X 10

1шт.

2

AT79608

WIRING HARNESS

(ALSO ORDER AT85258, (2) T82793, (2) 19H1948 AND (2) 24H1287)

1шт.

AT79608

WIRING HARNESS

1шт.

3

RE17515

SENSOR

STARTER SOLENOID

1шт.

15H73

COUPLING

1/8"

1шт.

4

R44302

TIE BAND

ARшт.

5

19M7866

SCREW

M8 X 20, TO AIR CLEANER

1шт.

03M7222

BOLT

M6 X 20, TO MUFFLER SUPPORTS

1шт.

14M7303

FLANGE NUT

M6, TO MUFFLER SUPPORTS

1шт.

6

T75197

CLAMP

2шт.

7

T75276

CLAMP

1шт.

8

19M7862

SCREW

M6 X 20

2шт.

9

14H785

NUT

5/16"

2шт.

10

14H631

NUT

0.190"

2шт.

11

14M7303

FLANGE NUT

M6

2шт.

12

T82793

NUT

2шт.

13

24H1287

WASHER

9/32" X 5/8" X 0.065"

2шт.

14

19H1948

CAP SCREW

1/4" X 3/4"

2шт.
