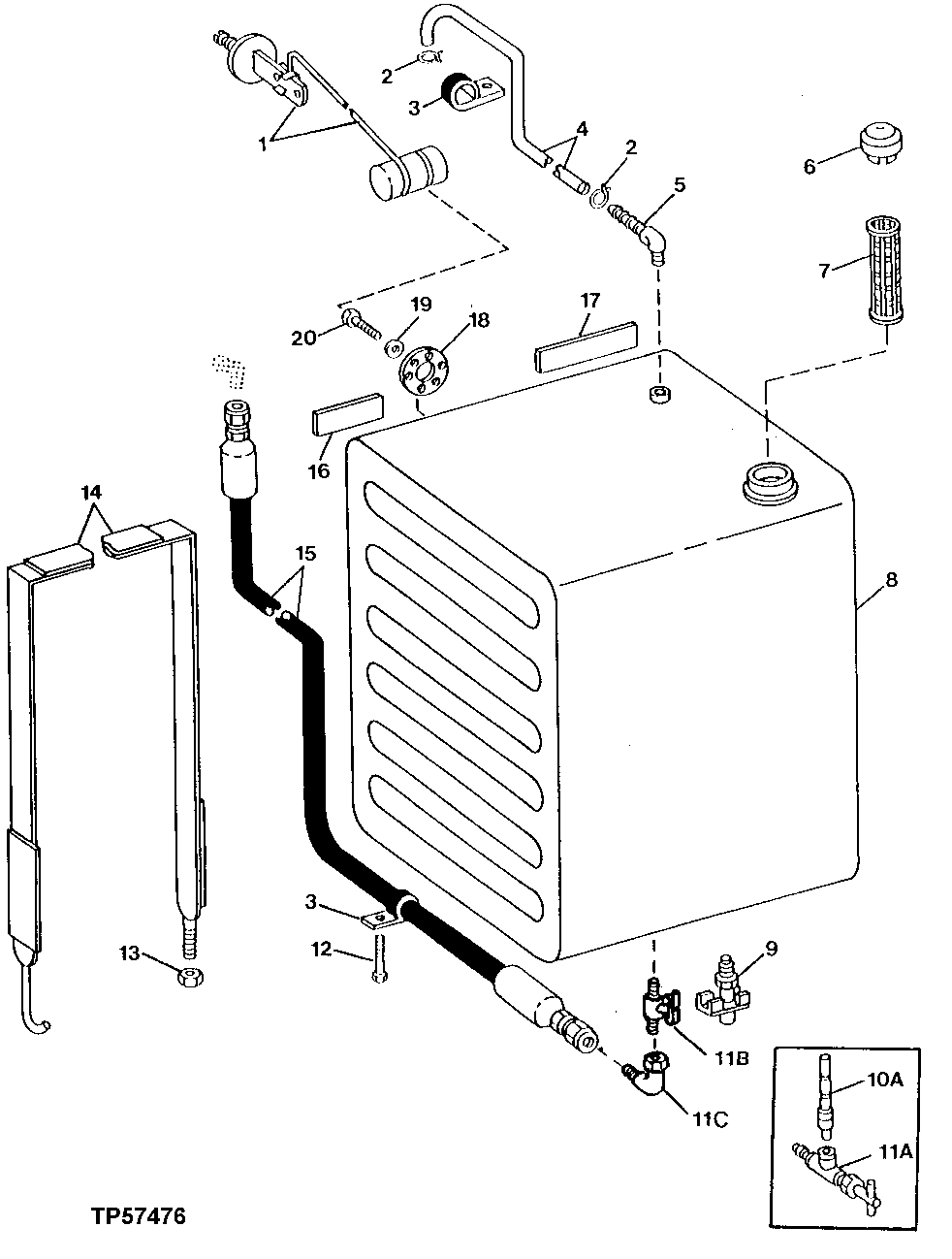

Запчасти John Deere 90C 2 - FUEL TANK AND FUEL HOSES 560 - ENGINE AUXILIARY SYSTEMS 5

1

AT105647

SENDER

(SUB FOR AT77506)

1шт.

2

R56101

CLIP

2шт.

3

H75541

CLAMP

(SUB FOR R34557)

4шт.

4

HOSE

(MAKE FROM N112006 BULK MATERIAL)

ARшт.

5

T28078

ELBOW FITTING

1шт.

6

AR36752

CAP

1шт.

7

AT74492

STRAINER

1шт.

8

AT83246

FUEL TANK

(SUB FOR AT77505)

1шт.

AT83246

FUEL TANK

1шт.

9

AT13740

DRAIN VALVE

1шт.

10A

FILTER

( T42632 NO LONGER REQUIRED)

1шт.

11A

SHUT-OFF VALVE

( AT35139 NO LONGER AVAILABLE, THIS APPLICATION) (SUB U45768 AND AT36766 OR U45538)

1шт.

11B

AT36766

HAND OPERATED VALVE

1шт.

11C

U45768

ELBOW FITTING

1шт.

12

19M7938

CAP SCREW

M10 X 20

3шт.

13

14M7170

LOCK NUT

M16

1шт.

14

AT77507

BAND

1шт.

15

AT43910

HYDRAULIC HOSE - FABRICATE

1/2" X 1 753 MM (69") X 1/2"

1шт.

16

T46077

ISOLATOR

2шт.

17

T78227

PAD

2шт.

18

R27181

GASKET

1шт.

19

12H295

LOCK WASHER

0.190"

5шт.

20

21H1316

SCREW

0.190" X 1/2"

5шт.

H85092

SCREW

(SUB FOR 37H73, THIS APPLICATION)

5шт.
