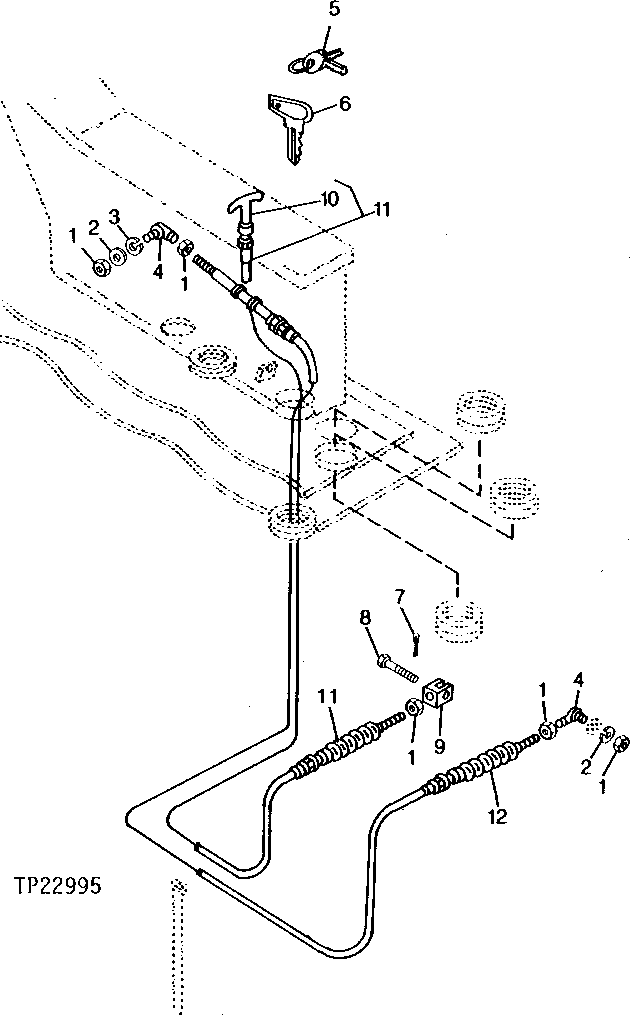

Запчасти John Deere 90C 1 - ENGINE SPEED CONTROL 515 - ENGINE AUXILIARY SYSTEMS 5

1

14M7297

NUT

M5, FUEL SHUT-OFF AND FLOW DIVIDER CABLES

5шт.

2

12M7064

LOCK WASHER

5 MM

2шт.

3

24M7027

WASHER

5.300 X 10 X 1 MM, (SUB FOR TH100540)

1шт.

4

4056016

BALL JOINT

(SUB FOR TH100325)

2шт.

5

KEY

IGNITION (SEE CONSOLE AND SWITCHES)

2шт.

6

4158653

KEY

(SUB FOR TH101605) DOOR

1шт.

AT195302

KEY

(SUB FOR AR51481 AND AT145929) FENDER LATCH AND FUEL CAP COVER

1шт.

7

11M7005

COTTER PIN

1.600 X 10 MM, (SUB FOR TH102008) SHUT-OFF AND DIVIDER CABLES

1шт.

8

45M7009

PIN FASTENER

6 X 16 MM, (SUB FOR TH102007) FUEL SHUT-OFF AND FLOW DIVIDER CABLES

1шт.

9

4156123

YOKE

(SUB FOR TH102006) FUEL SHUT-OFF AND FLOW DIVIDER CABLES

2шт.

10

T114379

HANDLE

(SUB FOR TH108083) FUEL SHUT-OFF (6 MM THREADS) (FITS 95° OF MACHINES)

1шт.

T114380

HANDLE

(5 MM THREADS) (FITS 5° OF MACHINES)

1шт.

11

4236626

PUSH PULL CABLE

(SUB FOR AT82728) FUEL SHUT-OFF

1шт.

12

4235423

PUSH PULL CABLE

(SUB FOR AT82727) SPEED CONTROL

1шт.

13

4236273

CABLE

(SUB FOR AT82729) FLOW DIVIDER (NOT ILLUSTRATED)

1шт.
