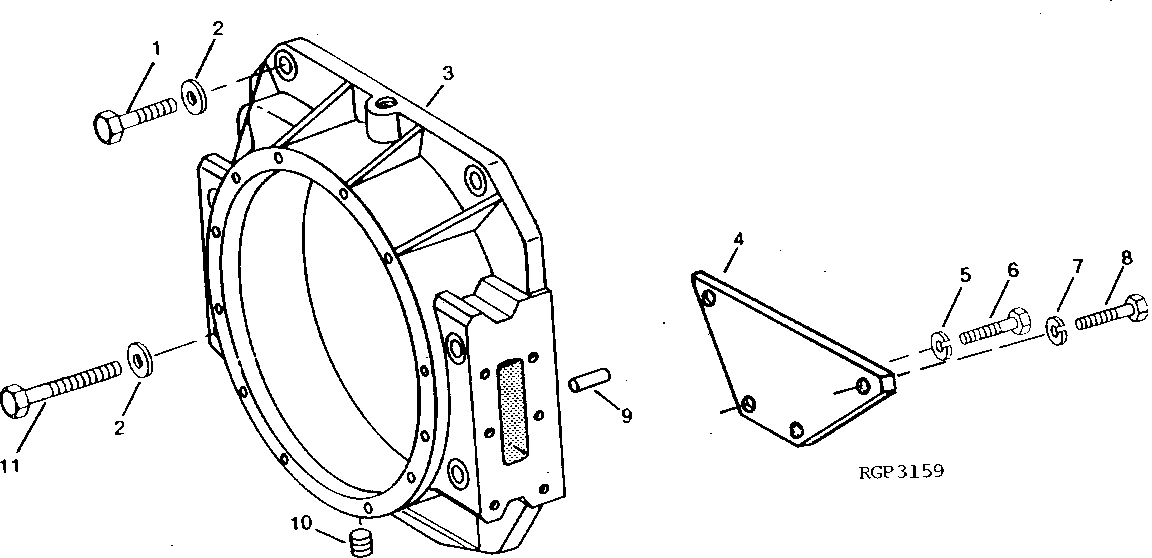

Запчасти John Deere 90C 4 - FLYWHEEL HOUSING 433 - ENGINE 4

1

19H1862

CAP SCREW

3/4" X 2-1/2", (UPPER)

2шт.

2

24M7353

WASHER

20 X 34 X 3 MM, (SUB FOR R42660)

6шт.

3

R90994

HOUSING

(SUB R121694 AND (2) H79910)

1шт.

R121694

HOUSING

1шт.

4

R56619

COVER

1шт.

5

12H304

LOCK WASHER

3/8"

2шт.

6

19H2021

CAP SCREW

3/8" X 5/8"

2шт.

7

12H301

LOCK WASHER

1/2"

2шт.

8

19H3530

CAP SCREW

1/2" X 7/8"

2шт.

9

T26565

DOWEL PIN

(USE WITH R90994)

2шт.

H79910

DOWEL PIN

(USE WITH R121694)

2шт.

10

R27175

DRAIN PLUG

(644C, 646C, 690C, 693C, 644D)

1шт.

11

19H2001

CAP SCREW

3/4" X 5-1/2", (LOWER)

4шт.

R39112

FITTING

(MAGNETIC PICK-UP HOLE)

1шт.
