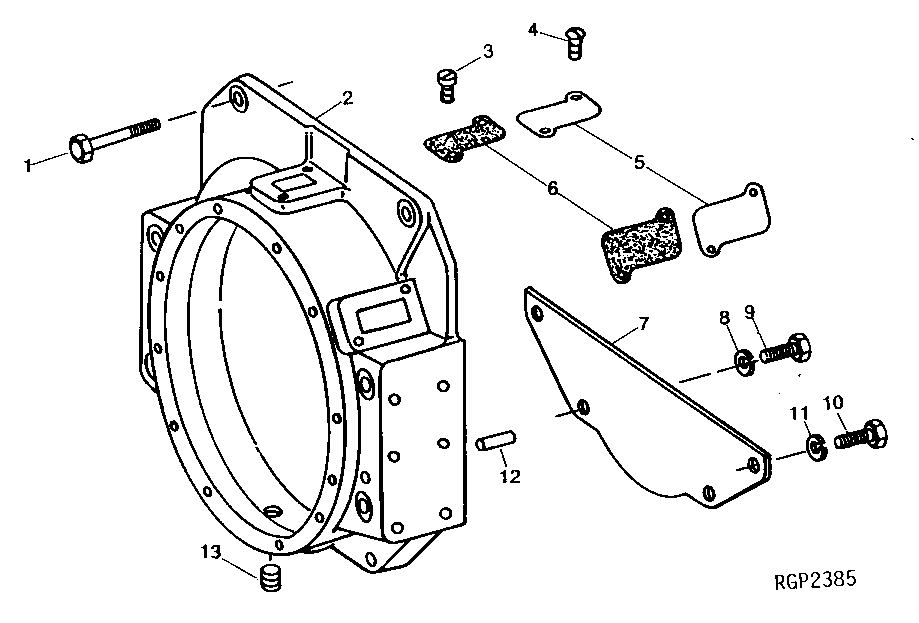

Запчасти John Deere 90C 3 - FLYWHEEL HOUSING 433 - ENGINE 4

1

19H2000

CAP SCREW

3/4" X 5", (LOWER)

4шт.

19H2431

CAP SCREW

3/4" X 2-1/4", (SUB FOR 19H1782) (UPPER)

2шт.

2

R68369

HOUSING

(SUB R121694, R56619, (4) 19H2021, (2) 19H1862, (6) 24M7353 AND (2) H79910)

1шт.

3

21H1318

SCREW

0.216" X 1/2"

2шт.

4

21H1318

SCREW

0.216" X 1/2"

2шт.

5

R31493

COVER

2шт.

6

R67989

GASKET

2шт.

7

R68370

COVER

1шт.

8

12H304

LOCK WASHER

3/8"

2шт.

9

19H2038

CAP SCREW

3/8" X 1/2"

2шт.

10

19H3530

CAP SCREW

1/2" X 7/8"

2шт.

11

12H301

LOCK WASHER

1/2"

2шт.

12

T26565

DOWEL PIN

(SUB FOR C1220R)

2шт.

13

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

1шт.

R39112

FITTING

(MAGNETIC PICK-UP HOLE)

1шт.
