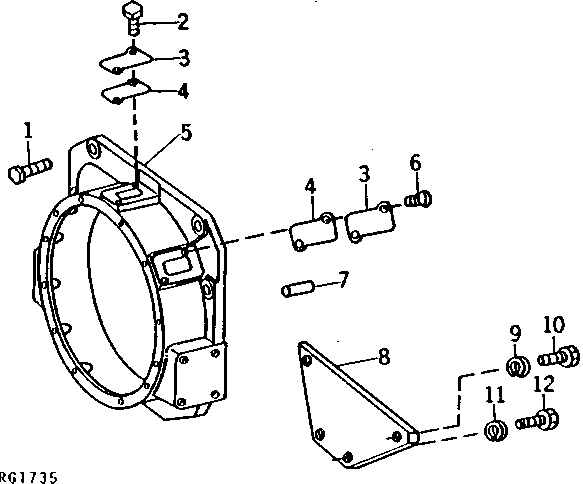

Запчасти John Deere 90C 2 - FLYWHEEL HOUSING 433 - ENGINE 4

1

19H2431

CAP SCREW

3/4" X 2-1/4", (LOWER) (SUB FOR 19H1782)

4шт.

19H2000

CAP SCREW

3/4" X 5", (UPPER)

2шт.

2

21H1318

SCREW

0.216" X 1/2"

2шт.

3

R31493

COVER

2шт.

4

R67989

GASKET

2шт.

5

R51822

HOUSING

(SUB R121694, R56619, (4) 19H2021, (2) 19H1862, (6) 24M7353 AND (2) H79910)

1шт.

6

21H1318

SCREW

0.216" X 1/2"

2шт.

7

T26565

DOWEL PIN

(SUB FOR C1220R)

2шт.

8

R56619

COVER

1шт.

9

12H301

LOCK WASHER

1/2"

2шт.

10

19H3530

CAP SCREW

1/2" X 7/8"

2шт.

11

12H304

LOCK WASHER

3/8"

2шт.

12

19H2038

CAP SCREW

3/8" X 1/2"

2шт.

R39112

FITTING

(MAGNETIC PICK-UP HOLE)

1шт.
