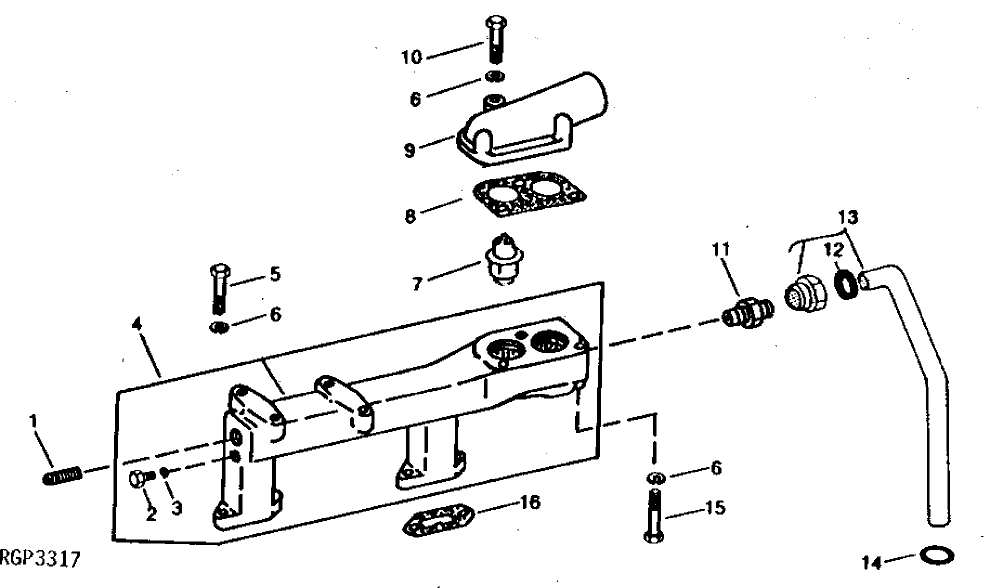

Запчасти John Deere 90C 1 - WATER OUTLET MANIFOLD AND THERMOSTATS 418 - ENGINE 4

1

15H690

PIPE PLUG

3/4"

1шт.

2

R82719

FITTING PLUG

(SUB FOR R27094, APPL.)

1шт.

3

R26286

O-RING

1шт.

4

RE12848

MANIFOLD

(MARKED R78123 OR R50415) (SUB R78123, R26286 AND R82719)

1шт.

R78123

MANIFOLD

(NOT AS SHOWN)

1шт.

5

19H3219

CAP SCREW

3/8" X 1-3/8"

4шт.

6

12H304

LOCK WASHER

3/8"

7шт.

7

AR48675

THERMOSTAT

82°C (180°F)

2шт.

AR72852

THERMOSTAT

82°C (192°F)

2шт.

8

R124607

GASKET

(SUB FOR R46479)

1шт.

9

R58721

COVER

1шт.

10

19H1733

CAP SCREW

3/8" X 2-1/2"

1шт.

11

R76560

COUPLING

1шт.

12

R76558

SLEEVE

1шт.

13

AR103815

OIL LINE

1шт.

14

R47153

O-RING

1шт.

15

19H2128

CAP SCREW

3/8" X 3"

2шт.

16

R88397

GASKET

(SUB FOR R42693)

2шт.

R72853

CLAMP

(ENGINE WIRING HARNESS TO WATER OUTLET MANIFOLD)

1шт.
