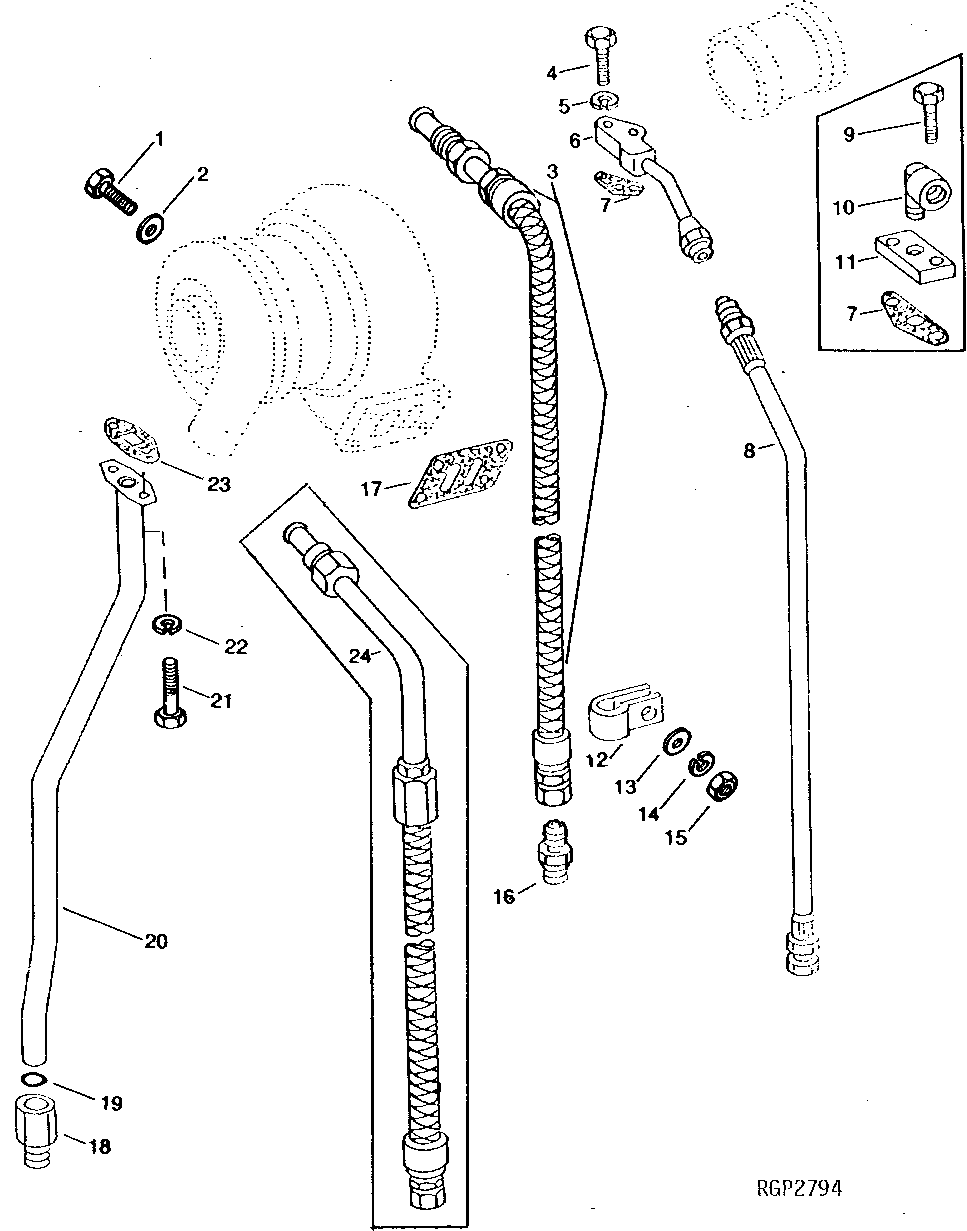

Запчасти John Deere 90C 4 - TURBOCHARGER OIL LINES 416 - ENGINE 4

1

R54500

SCREW

4шт.

2

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

3

RE20231

HOSE

1шт.

4

19H3552

CAP SCREW

5/16" X 1-1/2"

2шт.

5

12H303

LOCK WASHER

5/16"

2шт.

6

AR61590

OIL LINE

1шт.

7

R97348

GASKET

(SUB FOR R43413)

1шт.

8

AR76424

HYDRAULIC HOSE

1шт.

9

19H1905

CAP SCREW

5/16" X 1", (NO LONGER REQUIRED)

2шт.

10

T11180

ELBOW FITTING

(NO LONGER REQUIRED)

1шт.

11

R79723

STRAP

(SUB AR61590, R97348 AND AR76424, APPL)

1шт.

12

T13814

CLAMP

(SUB FOR AH80916)

1шт.

13

24H753

WASHER

9/32" X 5/8" X 0.049"

1шт.

14

12H297

LOCK WASHER

1/4"

1шт.

15

14H786

NUT

1/4"

1шт.

16

R62239

FITTING

1шт.

17

R43751

GASKET

1шт.

18

R41285

ADAPTER FITTING

1шт.

19

R72328

O-RING

(SUB FOR R43780)

1шт.

20

AR73815

OIL LINE

1шт.

21

R122618

SCREW

2шт.

22

12H304

LOCK WASHER

3/8", (NO LONGER REQUIRED)

2шт.

23

R105346

GASKET

(SUB FOR R43416 OR R97349)

1шт.

24

RE20230

OIL LINE

(SUB R20231, APPL)

1шт.
