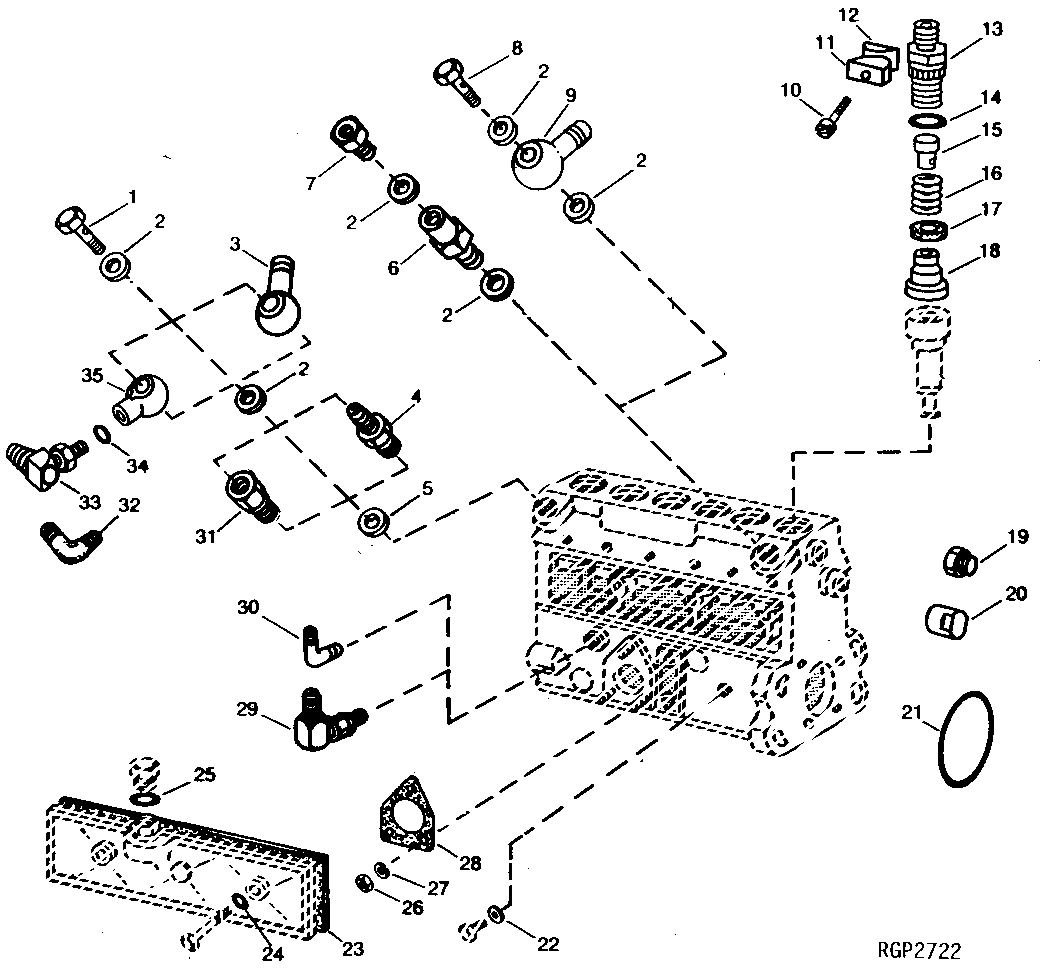

Запчасти John Deere 90C 6 - FUEL INJECTION PUMP HOUSING CONNECTORS 413 - ENGINE 4

1

R53903

HOLLOW SCREW

1шт.

2

51M4237

SEALING RING

(SUB FOR R53901)

4шт.

51M4237

SEALING RING

(SUB FOR R53901)

2шт.

3

R53902

FUEL SUPPLY BANJO FITTING

(USE WITH AR98069)

1шт.

4

R83490

FITTING

(USE WITH RE23155, RE35246, RE28950 OR RE37340)

1шт.

R26892

FITTING

(USE WITH RE41171 FUEL LINE)

1шт.

5

R53899

WASHER

(USE WITH AR98069)

1шт.

6

AR77114

CONTROL VALVE

(SUB FOR RE23942 ON 690C,693C) (644D,693C,762A,790,790D,792,793D,850B)

1шт.

7

R63016

ADAPTER FITTING

(644D,693C,762A,790,790D,792,793D,850B)

1шт.

8

R69626

BOLT

(644C,646C,JD743,740A,743A)

1шт.

R53903

HOLLOW SCREW

(JD743)

1шт.

9

R69627

FUEL SUPPLY BANJO FITTING

(644C,646C,JD743,740A,743A)

1шт.

R58608

FUEL SUPPLY BANJO FITTING

(JD743,743A)

1шт.

10

R54859

SCREW

3шт.

11

R54857

JAW

3шт.

12

R54858

JAW

3шт.

13

R63065

HOLDER

6шт.

NOZZLE HOLDER

NAшт.

14

R54856

O-RING

6шт.

15

R54881

INSERT

6шт.

16

R54854

SPRING

6шт.

17

R54853

SHIM

6шт.

18

R54892

VALVE

(JD743)

6шт.

AR63554

VALVE

644C,646C,JD743,740A,743A)

6шт.

RE16360

VALVE

(644D,762A,762B,790,790D,792,793D,850B)

6шт.

19

AR69158

CAP

1шт.

20

R54928

NUT

(770B,772B)

1шт.

21

R54873

O-RING

1шт.

22

R62107

WASHER

1шт.

23

R68435

GASKET

1шт.

24

T24224

WASHER

(JD743)

2шт.

R67877

O-RING

(644C,646C,690C,693C,JD743,743A,790,790D, 792,793D,850B)

2шт.

25

R54004

WASHER

(644C,646C,JD743,740A,743A)

1шт.

26

T31556

NUT

3шт.

27

T24229

LOCK WASHER

3шт.

28

R67879

GASKET

1шт.

29

FITTING

NAшт.

30

R57641

ELBOW FITTING

(740A,JD743)

1шт.

31

R53900

ADAPTER FITTING

(740A,JD743)

1шт.

R53900

ADAPTER FITTING

(USE WITH AR98069) (740A,JD743,743A)

1шт.

R53900

ADAPTER FITTING

(644C,644D,646C,690C,693C,762B,790,790D, 792,793D,850B)

1шт.

32

FITTING

NAшт.

33

FITTING

NAшт.

34

O-RING

NAшт.

35

R53162

FUEL SUPPLY BANJO FITTING

(USE WITH RE41171 FUEL LINE)

1шт.
