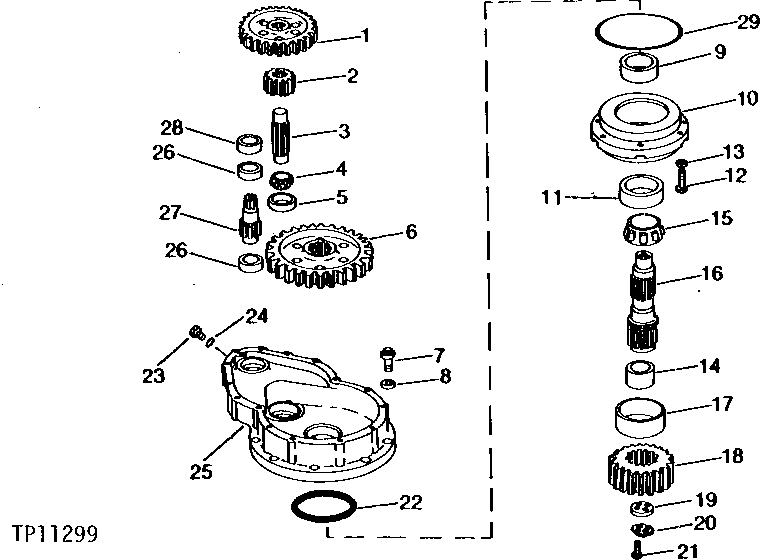

Запчасти John Deere 90B 8 - SWING GEARBOX CASE 40 - MAIN FRAME AND UNDERCARRIAGE

1

T40533

GEAR

INTERMEDIATE

1шт.

2

T24862

PINION

FINAL DRIVE

1шт.

3

T39405

SHAFT

INTERMEDIATE

1шт.

4

JD9027

BEARING CONE

1шт.

5

JD8223

BEARING CUP

1шт.

6

T40691

GEAR

FINAL DRIVE

1шт.

7

T40256

SCREW

9шт.

8

C12180

WASHER

(SUB FOR M930T, THIS APPLICATION)

9шт.

9

T40692

BUSHING

1шт.

10

T39413

BEARING HOUSING W/O BEARING

1шт.

11

JD9134

BEARING CUP

1шт.

12

R43406

CAP SCREW

6шт.

13

24H1341

WASHER

17/32" X 15/16" X 0.060"

6шт.

14

T39419

SLEEVE

1шт.

15

JD9077

BEARING CONE

1шт.

16

T39412

PINION SHAFT

1шт.

17

AT53802

SEAL

(SUB FOR AT39319)

1шт.

18

T39422

GEAR

1шт.

19

T39424

LOCK WASHER

1шт.

20

PLATE

( T39423 NO LONGER AVAILABLE) (SUB (4) T19583)

1шт.

T19583

WASHER

(NOT ILLUSTRATED)

4шт.

21

19H3617

CAP SCREW

HS, SAE 8, 7/16" X 1-1/8"

4шт.

22

T39414

O-RING

1шт.

23

R27094

DRAIN PLUG

1шт.

24

R26286

O-RING

1шт.

25

T39401

GEAR CASE

(USE IF AVAILABLE)

1шт.

26

JD7682

BALL BEARING

2шт.

27

T47029

GEAR

INPUT, (SUB FOR T39404)

1шт.

28

AT40603

SEAL

1шт.

29

R37287

O-RING

1шт.
