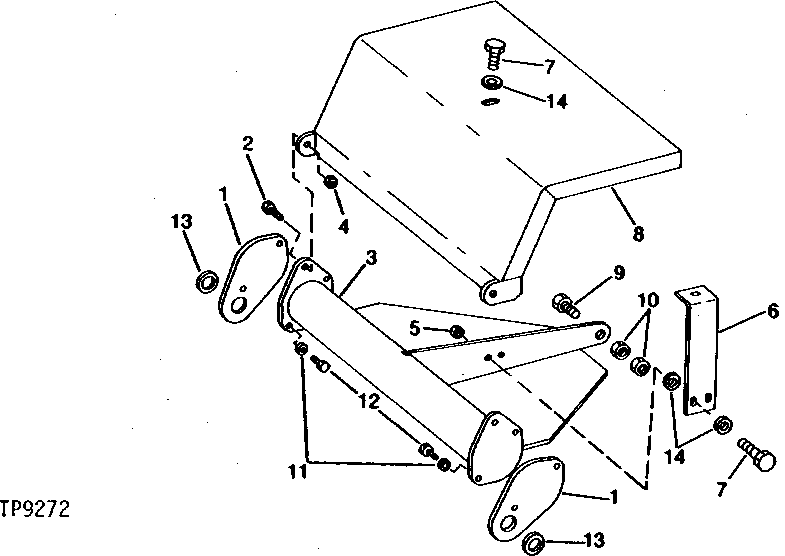

Запчасти John Deere 90B 7 - UNDERCARRIAGE SHIELD 40 - MAIN FRAME AND UNDERCARRIAGE

1

T39915

SUPPORT

2шт.

2

19H2592

CAP SCREW

5/8" X 2-1/8"

2шт.

3

AT38665

SHIELD

(8-FOOT UNDERCARRIAGE)

1шт.

AT39083

SHIELD

(9-1/2-FOOT UNDERCARRIAGE)

1шт.

4

U44915

LOCK NUT

LOCK, 5/8"

2шт.

5

14H1040

NUT

1/2", (SUB FOR 14H809)

2шт.

6

T43699

ANGLE

1шт.

7

19H2473

CAP SCREW

1/2" X 1-3/4"

3шт.

8

AT42571

COVER

(8-1/2-FOOT UNDERCARRIAGE)

1шт.

AT42572

COVER

(9-1/2-FOOT UNDERCARRIAGE)

1шт.

9

19H2695

CAP SCREW

1" X 3-1/4"

1шт.

10

14H806

NUT

1"

2шт.

11

12H294

LOCK WASHER

5/8"

4шт.

12

19H1833

CAP SCREW

5/8" X 1-1/4"

4шт.

13

T46498

WASHER

ARшт.

14

24H1162

WASHER

17/32" X 1-1/4" X 0.060"

5шт.
