Запчасти John Deere 90B 4 - UNDERCARRIAGE 40 - MAIN FRAME AND UNDERCARRIAGE

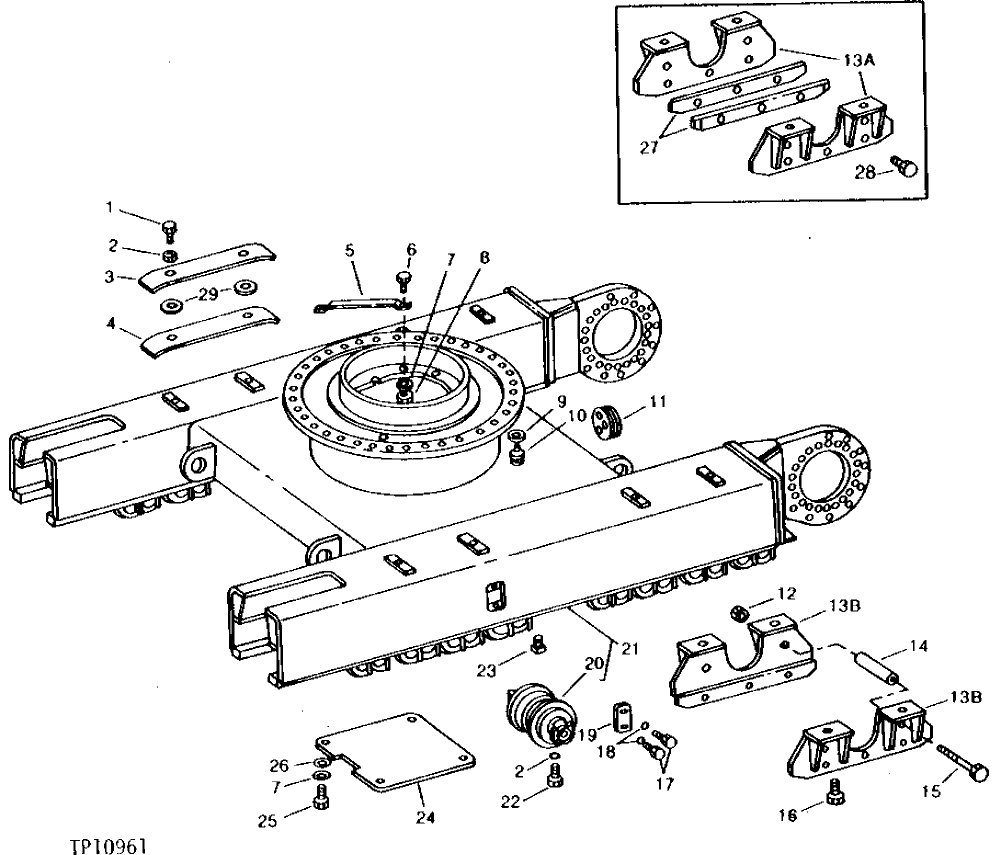

Схема запчастей John Deere 90B - 4 - UNDERCARRIAGE 40 - MAIN FRAME AND UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

19H2706

CAP SCREW

HS, SAE 8, 5/8" X 2"

8шт.

2

12H294

LOCK WASHER

5/8"

ARшт.

3

T39809

GUIDE

4шт.

4

T39810

GUIDE

4шт.

5

T39813

BASE

2шт.

6

19H1930

CAP SCREW

1/2" X 2-1/2"

4шт.

7

12H301

LOCK WASHER

1/2"

ARшт.

8

14H1040

NUT

1/2", (SUB FOR 14H809)

4шт.

9

T17776

WASHER

36шт.

10

T45564

SCREW

(SUB FOR T33477)

36шт.

11

T42554

GROMMET

RUBBER

1шт.

12

14H1058

NUT

(A) 3/4", (SUB FOR 14H400)

4шт.

13A

GUIDE

CHAIN, (SUB AT58353)

8шт.

13B

AT58353

GUIDE

(A)

4шт.

14

T41916

BUSHING

(A)

4шт.

15

08H4731

CAP SCREW

(A) 3/4" X 11-1/4"

4шт.

16

19H2710

CAP SCREW

(A) 5/8" X 1-3/4", HS, SAE 8, 5/8" X 1-3/4"

8шт.

17

19H1895

CAP SCREW

1/2" X 3/4"

4шт.

18

24H1227

WASHER

17/32" X 13/16" X 0.060"

4шт.

19

T39811

STRAP

2шт.

20

AT38206

ROLLER

EXCAVATOR SINGLE FLANGE (USE IF AVAILABLE) (SUB AT186521)

ARшт.

AT186521

ROLLER

EXCAVATOR SINGLE FLANGE (REPLACEMENT)

ARшт.

ROLLER

(SUB AT186521) EXCAVATOR DOUBLE FLANGE ( AT63520 NO LONGER AVAILABLE FOR SERVICE)

ARшт.

21

UNDERCARRIAGE

WITH SINGLE FLANGE ROLLERS (8 FEET WIDE) ( AT38200 NO LONGER AVAILABLE)

1шт.

UNDERCARRIAGE

WITH 8 DOUBLE AND 10 SINGLE FLANGE ROLLERS (8 FEET WIDE) ( AT63536 NO LONGER AVAILABLE)

1шт.

UNDERCARRIAGE

WITH SINGLE FLANGE ROLLERS (9-1/2 FEET WIDE) ( AT39085 NO LONGER AVAILABLE)

1шт.

UNDERCARRIAGE

WITH 8 DOUBLE AND 10 SINGLE FLANGE ROLLERS (9-1/2 FEET WIDE) ( AT63533 NO LONGER AVAILABLE)

1шт.

22

19H2969

CAP SCREW

HS, SAE 8, 5/8" X 3-1/2"

72шт.

23

15H633

PIPE BUSHING

PIPE, SQ. HD., 1-1/2" (CRATER COMPOUND LUBE DRAIN HOLE)

3шт.

24

T39812

COVER

1шт.

25

19H2993

CAP SCREW

1/2" X 1-1/2"

4шт.

26

24H1625

WASHER

17/32" X 1" X 0.120"

4шт.

27

T60901

STRIP

(USE WITH KEY 13A) (SUB FOR T41917)

8шт.

28

19H2716

CAP SCREW

3/4" X 1-1/2", (USE WITH KEY 13A)

24шт.

29

24H1106

WASHER

11/16" X 1-3/4" X 0.134"

8шт.

DRAWER SLIDE

(SUB FOR AT42494) INCLUDES ALL PARTS IDENTIFIED BY (A) ( AT106471 NO LONGER AVAILABLE, ORDER COMPONENTS)

1шт.

Выбрано товаров: 36
