Запчасти John Deere 90B 2 - MAIN FRAME 40 - MAIN FRAME AND UNDERCARRIAGE

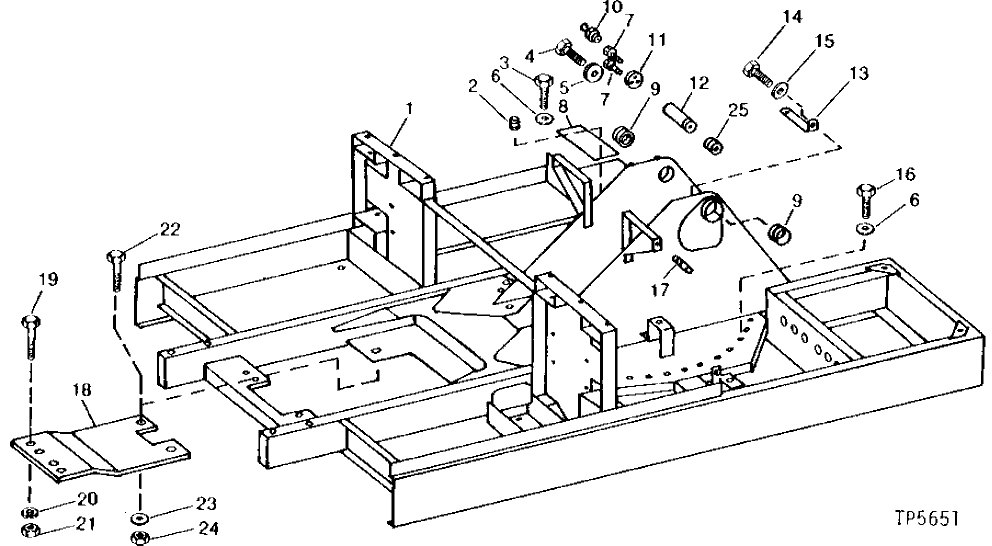

Схема запчастей John Deere 90B - 2 - MAIN FRAME 40 - MAIN FRAME AND UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

FRAME

( AT38455 USE IF AVAILABLE)

1шт.

2

15H243

ADAPTER FITTING

PIPE, SQ. HD., 2-1/2"

1шт.

3

T33478

CAP SCREW

3/4" X 2" (USE IN COUNTERBORE HOLES)

6шт.

4

19H3472

CAP SCREW

5/8" X 9-3/4"

2шт.

5

U45880

BUSHING

2шт.

6

T17776

WASHER

33шт.

7

19H2898

CAP SCREW

HS, SAE 8, 1/2" X 1-1/4"

4шт.

8

H21259

MAT

2шт.

9

U44043

BUSHING

2шт.

10

JD7759

LUBRICATION FITTING

STRAIGHT, 1/8"

4шт.

11

U45879

SPACER

2шт.

12

U45874

PIN FASTENER

CYLINDER BOOM

2шт.

13

U46718

ANGLE

1шт.

14

19H2993

CAP SCREW

1/2" X 1-1/2"

1шт.

15

12H301

LOCK WASHER

1/2"

1шт.

16

T45564

SCREW

3/4" X 2-1/2", (SUB FOR T33477)

28шт.

T38481

CAP SCREW

3/4" X 8-1/4" (BETWEEN BOOM PIVOT EARS AND RAIL)

4шт.

17

U40158

STUD

1шт.

18

T52868

PLATE

1шт.

T70851

GUARD

BOTTOM, ENGINE

1шт.

19

19H2411

CAP SCREW

3/4" X 2-1/2"

4шт.

20

12H236

LOCK WASHER

3/4"

4шт.

21

14H794

NUT

3/4"

4шт.

22

19H2431

CAP SCREW

3/4" X 2-1/4", (SUB FOR 19H1782)

2шт.

23

T25922

WASHER

(USE IF AVAILABLE)

2шт.

T151797

WASHER

(SUB FOR T25922 OR T134960)

2шт.

24

14H794

NUT

3/4"

2шт.

25

U43784

BUSHING

4шт.

Выбрано товаров: 28
