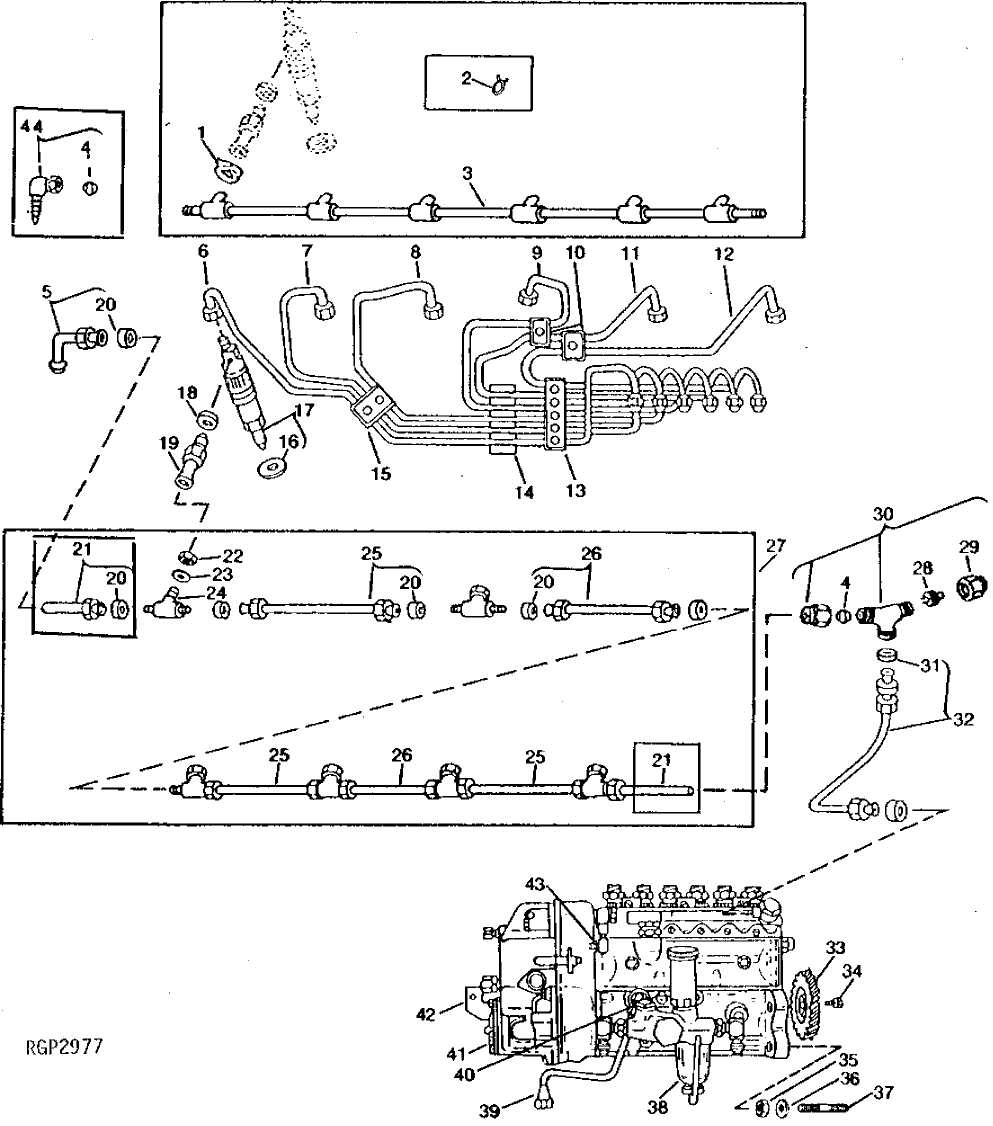

Запчасти John Deere 90B 16 - FUEL INJECTION PUMP, NOZZLES AND LINES 30 - FUEL SYSTEM

1

R76170

CLAMP

6шт.

2

TY22462

CLAMP

(SUB R76170) (SUB FOR R69319)

6шт.

3

AR88495

FUEL LINE

(SUB RE27786, RE23319 AND (2) R79138)

1шт.

4

R79138

SLEEVE

2шт.

5

AR104650

FUEL LINE

LEAK-OFF, (SUB FOR RE503092)

1шт.

6

AR96862

FUEL LINE

NO. 6, (SUB FOR AR69451)

1шт.

7

AR96861

FUEL LINE

NO. 5, (SUB FOR AR69450)

1шт.

8

AR96860

FUEL LINE

NO. 4, (SUB FOR AR69449)

1шт.

9

AR96859

FUEL LINE

NO. 3, (SUB FOR AR69448)

1шт.

10

R58186

CLAMP

4шт.

R61144

STRAP

2шт.

R59305

STRAP

2шт.

21H1463

CAP SCREW

0.190" X 7/8"

2шт.

12H246

LOCK WASHER

0.190"

2шт.

11

AR96858

FUEL LINE

NO. 2, (SUB FOR AR69447)

1шт.

12

AR96857

FUEL LINE

NO. 1, (SUB FOR AR69446)

1шт.

13

R59302

CLAMP

2шт.

R61147

RETAINER

1шт.

R59304

REINFORCEMENT

1шт.

21H1463

CAP SCREW

0.190" X 7/8"

5шт.

12H246

LOCK WASHER

0.190"

5шт.

14

R76568

ABSORBER

1шт.

15

R59297

HALF CLAMP

2шт.

R61145

STRAP

1шт.

R59298

STRAP

1шт.

21H1463

CAP SCREW

0.190" X 7/8"

2шт.

12H246

LOCK WASHER

0.190"

2шт.

16

R64840

WASHER

6шт.

17

AR74665

INJECTION NOZZLE

6шт.

SE500103

INJECTION NOZZLE

(REMANUFACTURED FOR AR74665) PKG OF 6

1шт.

SE501112

INJECTION NOZZLE

(REMANUFACTURED FOR AR74665-PKG OF 1) CALL 1-888-697-3626

ARшт.

18

R59294

SEALING RING

(USE WITH R59293 OR R83558)

6шт.

R77551

O-RING

(VITON)

6шт.

19

R59293

FITTING

(SUB (6) R87082 AND (6) R77551)

6шт.

R83558

FITTING

(SUB R87082 AND R77551)

6шт.

R87082

FITTING

(ALSO ORDER R77551)

6шт.

20

R51936

SEALING WASHER

12шт.

R51936

SEALING WASHER

11шт.

21

RE23319

FUEL LINE

(SUB FOR RE15806)

2шт.

RE23319

FUEL LINE

(SUB FOR RE15806)

1шт.

22

R79604

TUBE NUT

6шт.

23

R79605

WASHER

6шт.

24

R79606

TEE FITTING

6шт.

25

RE15807

FUEL LINE

3шт.

26

RE15808

FUEL LINE

2шт.

27

RE27786

FUEL LINE

(SUB FOR RE15805 OR RE21103) (ALSO ORDER RE23319 AND R79138)

1шт.

28

AR85519

PLUG

1шт.

29

R51937

TUBE NUT

1шт.

30

AR88120

TEE FITTING

1шт.

31

R51936

SEALING WASHER

(SUB FOR R63603)

2шт.

32

AR88496

FUEL LINE

1шт.

33

R68274

GEAR

(SUB FOR AR88905, APPL)

1шт.

34

AR59115

SELF-LOCKING SCREW

(SUB 19H3336 AND R63845)

3шт.

19H3336

SCREW

3/8" X 7/8"

3шт.

R63845

WASHER

3шт.

35

E55662

FLANGE NUT

(SUB FOR R32511)

4шт.

36

R42729

WASHER

4шт.

37

R114130

STUD

(SUB FOR R55396, APPL.)

4шт.

38

FUEL PUMP

(SUB RE20042 AND (2) AR104674)

1шт.

39

AR91012

LINE

(SUB FOR AR61514) (SUB RE38732 AND R76822)

1шт.

40

R57641

ELBOW FITTING

1шт.

41

AR88910

FUEL INJECTION PUMP

(A) (PES6A95D410RS2559)

1шт.

42

R55066

BRACKET

1шт.

43

AT32333

ELBOW FITTING

1шт.

44

AR85517

ADAPTER FITTING

1шт.
