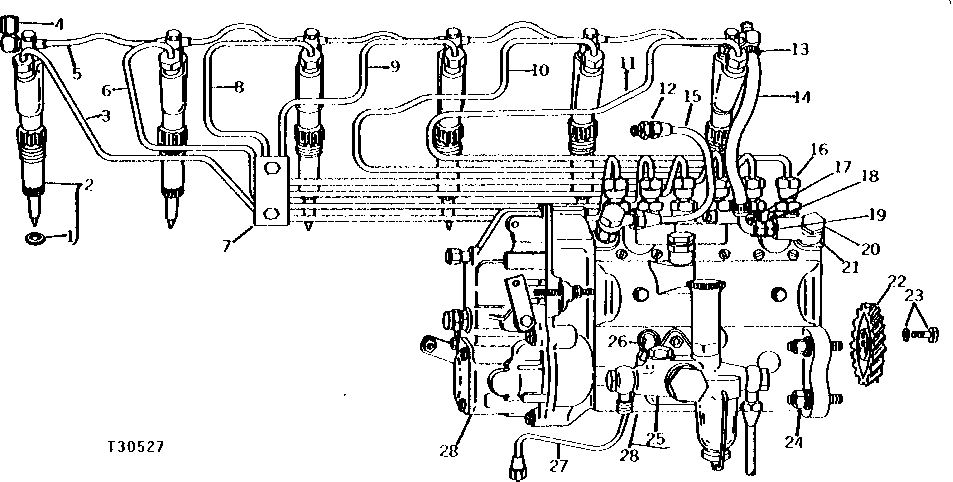

Запчасти John Deere 90B 6 - FUEL INJECTION PUMP, NOZZLES AND LINES (ESN -445569) 30 - FUEL SYSTEM

1

R64840

WASHER

(SUB FOR R48633, APPL)

6шт.

2

AR53091

INJECTION NOZZLE

6шт.

SE500098

INJECTION NOZZLE

(REMANUFACTURED FOR AR53091) (PKG OF 6)

1шт.

SE501107

INJECTION NOZZLE

(REMANUFACTURED FOR AR53091) (PKG OF 1)

ARшт.

3

AR61521

FUEL LINE

NO.6

1шт.

4

R31147

FITTING

1шт.

5

AR68961

FUEL LINE

(SUB FOR AR50732)

1шт.

6

AR61520

FUEL LINE

NO.5

1шт.

7

R26728

STRAP

1шт.

R26789

STRAP

1шт.

R26790

CUSHION

1шт.

R48358

STRAP

1шт.

R48360

STRAP

1шт.

R48359

CUSHION

1шт.

19H1914

CAP SCREW

1/4" X 1"

5шт.

AR53461

CLAMP

1шт.

R49629

CLAMP

1шт.

14H786

NUT

1/4"

1шт.

12H302

LOCK WASHER

1/4"

1шт.

8

AR61519

FUEL LINE

NO.4

1шт.

9

AR61518

FUEL LINE

NO.3

1шт.

10

AR61517

FUEL LINE

NO.2

1шт.

11

AR61516

FUEL LINE

NO.1

1шт.

12

U42417

COUPLING

1шт.

13

TY22462

CLAMP

(SUB FOR AR48236)

2шт.

14

TY22418

BULK HOSE

(SUB FOR R32639)

1шт.
