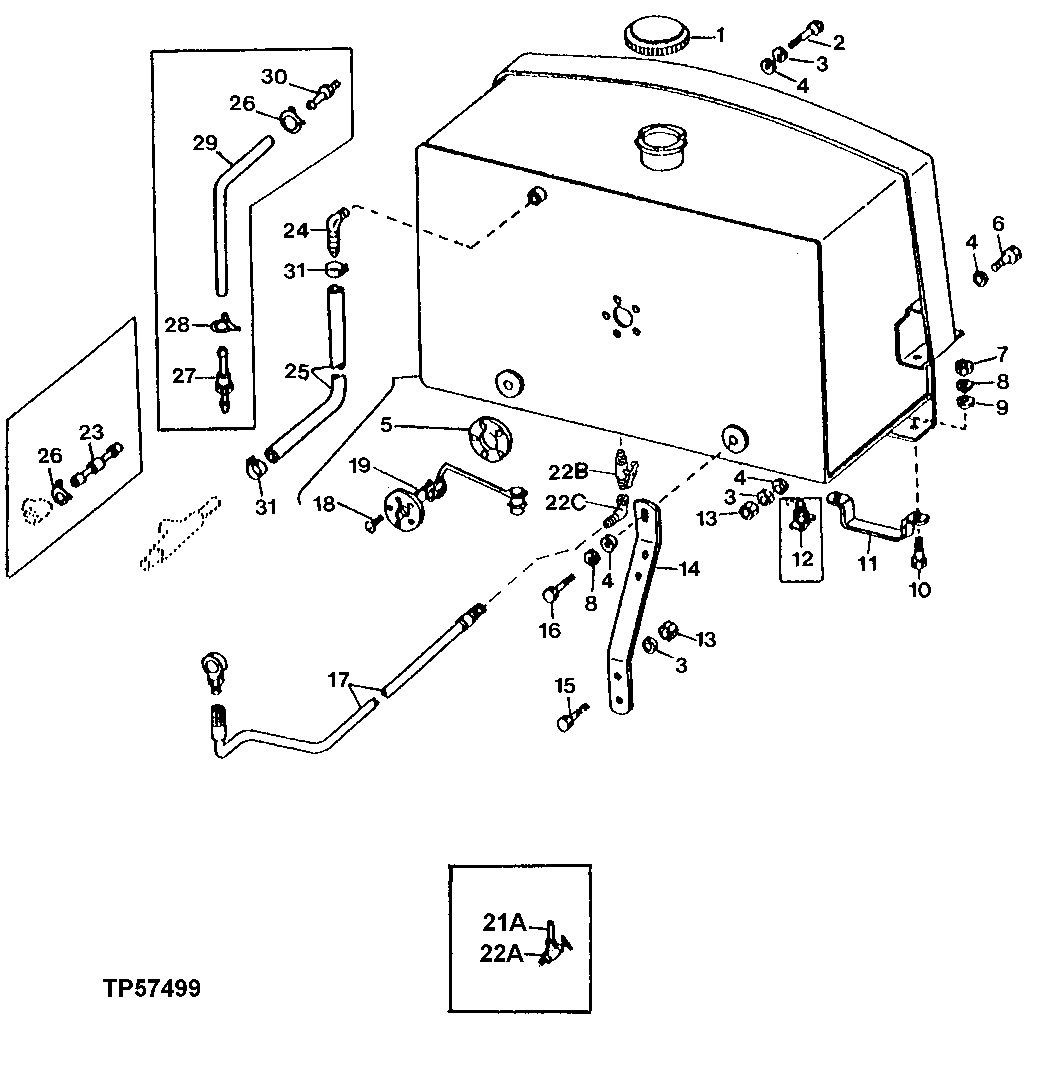

Запчасти John Deere 90B 1A - FUEL TANK 30 - FUEL SYSTEM

1

AR36752

CAP

1шт.

2

T13923

STUD

3шт.

3

12H301

LOCK WASHER

1/2"

12шт.

4

24H1254

WASHER

17/32" X 1-1/8" X 0.105"

14шт.

5

R27181

GASKET

1шт.

6

19H2993

CAP SCREW

1/2" X 1-1/2"

3шт.

7

14H812

NUT

3/8"

2шт.

8

12H304

LOCK WASHER

3/8"

2шт.

9

24H1308

WASHER

13/32" X 1" X 0.134"

2шт.

10

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

11

U46233

HANDLE

1шт.

12

AT13740

DRAIN VALVE

1шт.

13

14H1040

NUT

1/2", (SUB FOR 14H809)

10шт.

14

U45605

SUPPORT

2шт.

15

19H2735

CAP SCREW

1/2" X 2"

4шт.

16

19H2898

CAP SCREW

1/2" X 1-1/4"

2шт.

17

AT41166

HYDRAULIC HOSE - FABRICATE

1/2" X 1 080 MM (42-1/2") X 1/2"

1шт.

18

21H1300

SCREW

0.190" X 3/8"

5шт.

37H73

SCREW

5шт.

19

AT81470

SENDER

(SUB FOR AT41458)

1шт.

20

AT38488

FUEL TANK

(SUB AT54692)

1шт.

AT54692

FUEL TANK

WITH SENCER

1шт.

AT80863

FUEL TANK

1шт.

21A

FILTER

( T36201 NO LONGER AVAILABLE) (SUB T42632)

1шт.

FILTER

( T42632 NO LONGER REQUIRED)

1шт.

22A

SHUT-OFF VALVE

( AT35139 NO LONGER AVAILABLE, THIS APPLICATION) (SUB U45768 AND AT36766 OR U45538)

1шт.

22B

AT36766

HAND OPERATED VALVE

1шт.

22C

U45768

ELBOW FITTING

1шт.

23

M49689

TUBE

1шт.

24

R130943

ELBOW FITTING

(SUB FOR T28077) 90°

1шт.

25

N112006

HOSE

107" (MAKE FROM TY22559 BULK MATERIAL, CUT TO LENGTH)

1шт.

26

R34766

CLAMP

1шт.

R34766

CLAMP

1шт.

27

TUBE

LEAK-OFF, (SUB FOR AT34763)

1шт.

28

T13254

CLAMP

1шт.

29

U45821

HYDRAULIC HOSE

1шт.

30

U42355

FITTING

(SUB (2) R56101, THIS APPLICATION)

1шт.

31

R56101

CLIP

2шт.
