Запчасти John Deere 90B 4 - WATER MANIFOLD AND THERMOSTATS 25 - COOLING SYSTEM

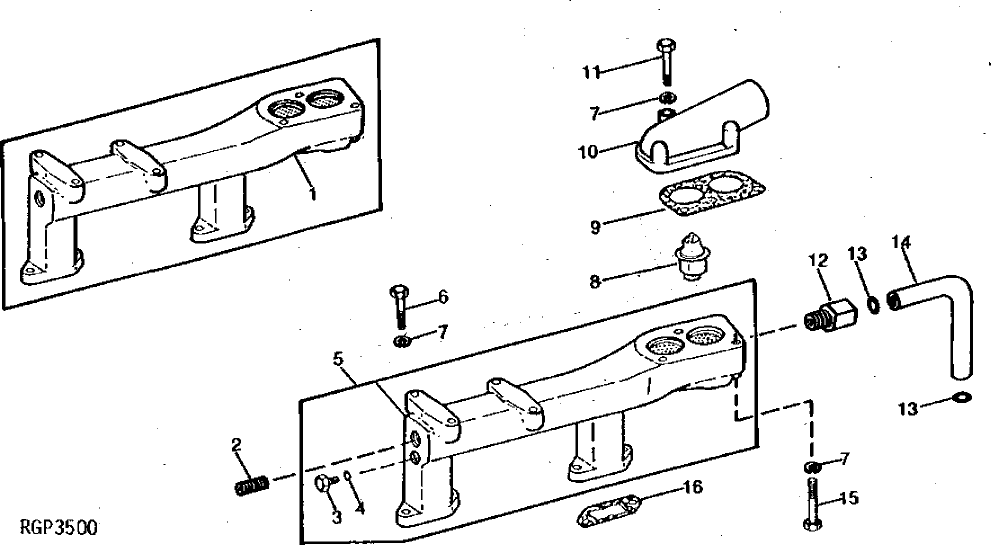

Схема запчастей John Deere 90B - 4 - WATER MANIFOLD AND THERMOSTATS 25 - COOLING SYSTEM

Артикул

Название

Примечание

Количество

1

R50415

MANIFOLD

(SUB RE12848)

1шт.

2

15H690

PIPE PLUG

3/4"

1шт.

3

R82719

FITTING PLUG

(USE WITH R78123) (SUB FOR R27094, APPL.)

1шт.

4

R26286

O-RING

(USE WITH R78123)

1шт.

5

RE12848

MANIFOLD

(MARKED R78123) (SUB R78123, R26286 AND R82719)

1шт.

R78123

MANIFOLD

(NOT AS SHOWN)

1шт.

6

19H2545

CAP SCREW

3/8" X 1-3/8"

4шт.

7

12H304

LOCK WASHER

3/8"

7шт.

8

AR48675

THERMOSTAT

82°C (180°F)

2шт.

AR72852

THERMOSTAT

89°C (192°F)

2шт.

9

R124607

GASKET

(SUB FOR R46479)

1шт.

10

R53423

COVER

1шт.

11

19H1733

CAP SCREW

3/8" X 2-1/2"

1шт.

12

R43491

FITTING

1шт.

13

R47153

O-RING

(SUB FOR R50420, APPL.)

2шт.

14

R51960

LINE

1шт.

15

19H2128

CAP SCREW

3/8" X 3"

2шт.

16

R88397

GASKET

(SUB FOR R42693)

2шт.

Выбрано товаров: 18
