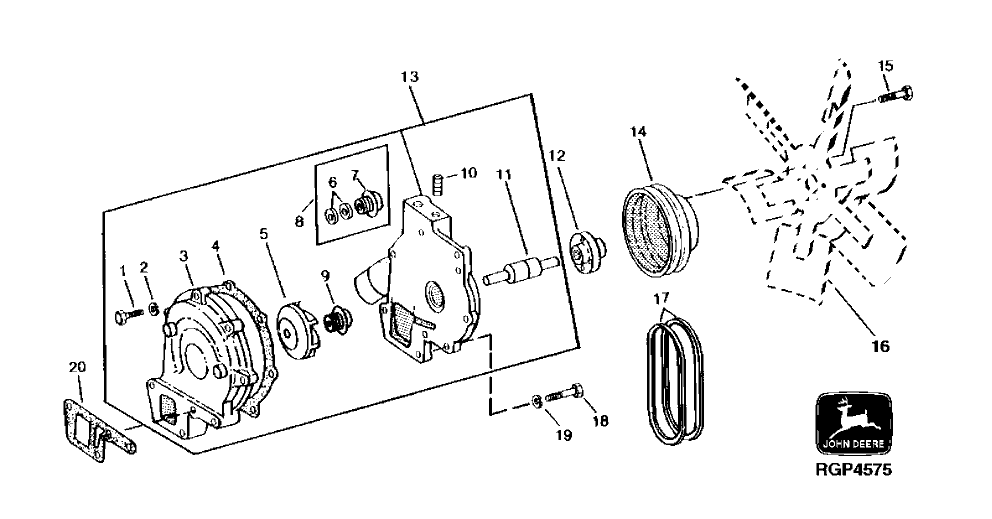

Запчасти John Deere 90B 3 - WATER PUMP AND FAN 25 - COOLING SYSTEM

1

19H1875

CAP SCREW

5/16" X 1-3/4"

4шт.

2

12H303

LOCK WASHER

5/16"

4шт.

3

R50409

HOUSING

1шт.

4

R50410

GASKET

1шт.

5

R50411

IMPELLER

1шт.

6

AR41691

SEAL KIT

(SUB AR101549)

1шт.

7

T27261

SEAL

(SUB AR101549)

1шт.

8

AR62934

SEAL

(SUB AR101549)

1шт.

9

AR101549

SEAL KIT

1шт.

10

15H666

PIPE PLUG

3/8"

1шт.

11

JD9257

BALL BEARING

1шт.

12

R51684

HUB

1шт.

13

SE500915

WATER PUMP

(REMANUFACTURED) (ALSO ORDER R51684 AS REQUIRED) (MARKED R50408) (SUB FOR AR54578, AR98547 OR RE20023)

1шт.

TY6742

WATER PUMP

(REMANUFACTURED)

1шт.

14

R52592

PULLEY

1шт.

15

19H1731

CAP SCREW

3/8" X 1"

4шт.

16

AT58891

FAN

(SUCTION) (SUB FOR AU43304)

1шт.

AH83386

FAN

(BLOWER)

1шт.

17

AR53099

BELT SET

(MATCHED SET)

1шт.

18

19H1944

CAP SCREW

3/8" X 2-3/4"

4шт.

19

12H304

LOCK WASHER

3/8"

4шт.

20

R42406

GASKET

1шт.
