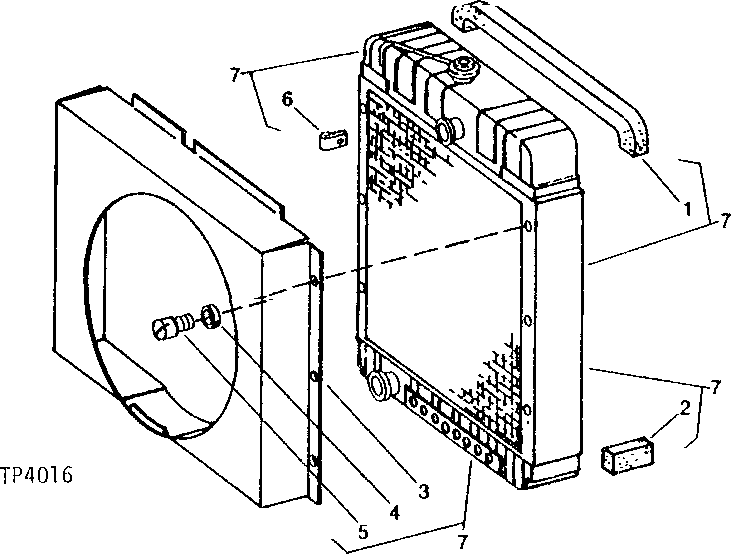

Запчасти John Deere 90B 1 - RADIATOR AND FAN SHROUD 25 - COOLING SYSTEM

1

T66628

ISOLATOR

(PERFEX)

1шт.

2

ISOLATOR

(PERFEX) ( T66627 USE IF AVAILABLE)

2шт.

3

AT40893

SHROUD

(MODINE)

1шт.

AT63176

SHROUD

(PERFEX) WITH TOP AND BOTTOM TAG MOUNTINGS

1шт.

AT69389

SHROUD

(MODINE)

1шт.

AT69388

RADIATOR

(PERFEX) WITH TOP AND BOTTOM TAG MOUNTINGS, (SUB FOR AT69391)

1шт.

4

12H302

LOCK WASHER

1/4"

11шт.

5

21H1302

SCREW

1/4" X 5/8"

11шт.

6

T21101

CLAMP

2шт.

7

AT40894

RADIATOR

WITHOUT FAN SHROUD, (SUB AT57537)

1шт.

AT57537

RADIATOR

WITH FAN SHROUD

1шт.

AT69388

RADIATOR

WITH FAN SHROUD

1шт.
