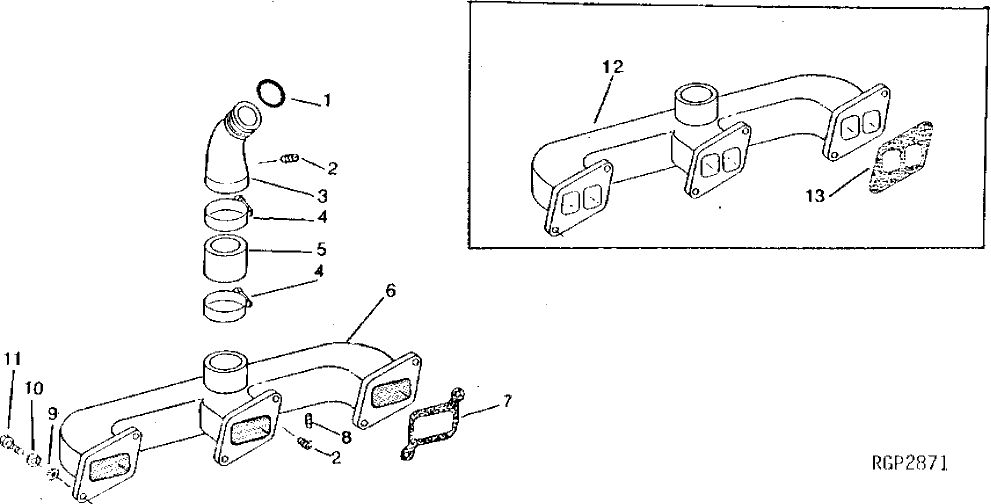

Запчасти John Deere 90B 11 - INTAKE MANIFOLD 15 - INTAKE AND EXHAUST SYSTEM

1

R50406

O-RING

1шт.

2

15H666

PIPE PLUG

3/8"

2шт.

3

R81928

COUPLING

(SUB FOR R63129) (ALSO ORDER 15H666)

1шт.

4

AT37478

HOSE CLAMP

(SUB FOR AR62936, APPL)

2шт.

5

R43605

HOSE

76MM X 51MM (3" X 2")

1шт.

6

R89790

INTAKE MANIFOLD

(MARKED R89790 OR R104706) (SUB R134429, (3) R130573, 15H690 AND R104592)

1шт.

R134429

INTAKE MANIFOLD

(SUB FOR R130718) (SUB R503925)

1шт.

R503925

INTAKE MANIFOLD

(ALSO ORDER RE46684)

1шт.

7

R130573

GASKET

(SUB FOR R87316 OR R102838)

3шт.

8

R104592

PIPE PLUG

1шт.

9

24H1303

WASHER

13/32" X 11/16" X 0.065", (USE WITH R89790)

6шт.

10

12H304

LOCK WASHER

3/8"

6шт.

11

19H1732

CAP SCREW

3/8" X 1-1/4", (USE WITH R52288 OR R81927)

6шт.

19H1800

CAP SCREW

3/8" X 1-1/2", (USE WITH R89790)

6шт.

12

R81927

INTAKE MANIFOLD

(SUB FOR R52288) (SUB R134429, (3) R130573, 15H690, R104592, (6) 24H1303 AND (6) 19H1800)

1шт.

13

R50397

GASKET

(USE WITH R52288 OR R81927)

3шт.
