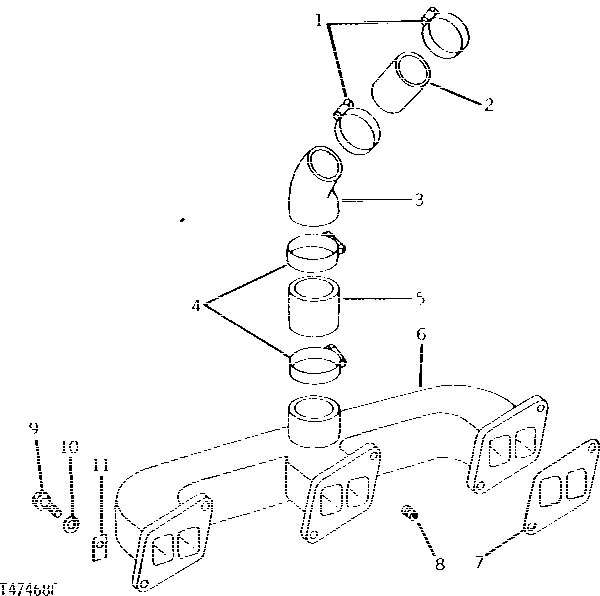

Запчасти John Deere 90B 10 - INTAKE MANIFOLD 15 - INTAKE AND EXHAUST SYSTEM

1

TY22470

CLAMP

(SUB FOR AR21840)

2шт.

2

R43604

HOSE

1шт.

3

R47293

PIPE

1шт.

4

AT37478

HOSE CLAMP

(SUB FOR AR62936, THIS APPLICATION)

2шт.

5

R43605

HOSE

1шт.

6

R52288

INTAKE MANIFOLD

(SUB R134429, 15H690, R130573, (3) R102838, (6) 24H1303 AND (6) 19H1800)

1шт.

R134429

INTAKE MANIFOLD

(SUB R503925) (NOT AS SHOWN)

1шт.

R503925

INTAKE MANIFOLD

(ALSO ORDER RE46684)

1шт.

7

R50397

GASKET

(USE WITH R52288)

3шт.

R130573

GASKET

(NOT AS SHOWN) (SUB FOR R104592) (USE WITH R134429)

3шт.

8

15H666

PIPE PLUG

3/8"

1шт.

9

19H1732

CAP SCREW

3/8" X 1-1/4"

6шт.

10

12H304

LOCK WASHER

3/8"

6шт.

11

B1986R

CLIP

1шт.
