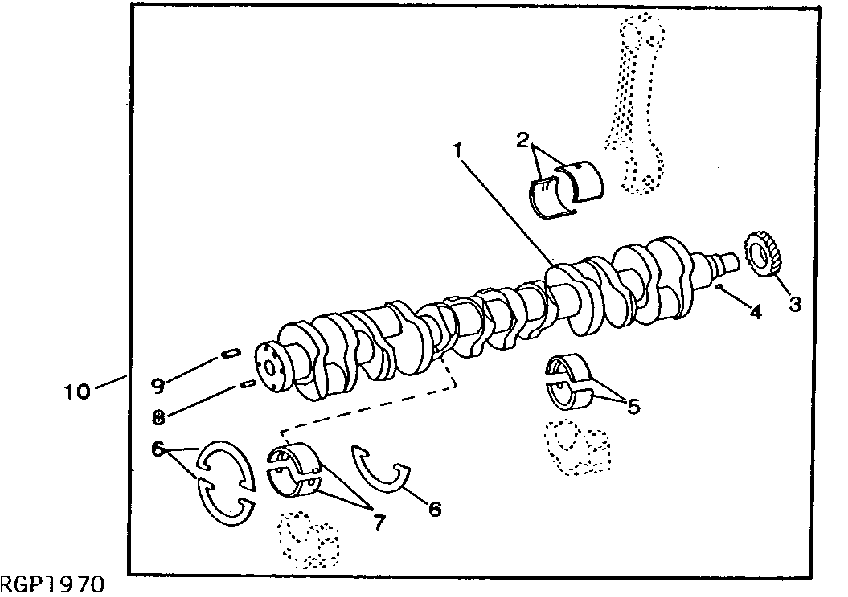

Запчасти John Deere 90B 45 - UNDERSIZE CONNECTING ROD JOURNAL CRANKSHAFT AND BEARING KIT 10 - ENGINE

1

CRANKSHAFT

0.25MM (.010") US, (MARKED R78102 OR RE42679) (SUB RE53424)

1шт.

2

AR46396

BEARING

0.25MM (.010") US (PKG (2) R44926)

6шт.

3

R26049

HELICAL GEAR

(USE WITH R78102, THIS APPLICATION)

1шт.

R105488

GEAR

(USE WITH RE42679, THIS APPLICATION)

1шт.

4

R120752

KEY

1шт.

5

AR74814

BEARING

STD (PKG R57584 AND R61289)

6шт.

6

AR77747

THRUST WASHER

STD (PKG (3) R62986)

1шт.

7

AR77748

THRUST BEARING

STD (PKG R62987 AND R62988)

1шт.

8

22H821

SET SCREW

1/2" X 1/2"

2шт.

9

R41934

DOWEL PIN

1шт.

10

RE12434

CRANKSHAFT

(MARKED R78102) (SUB RE53424)

1шт.
