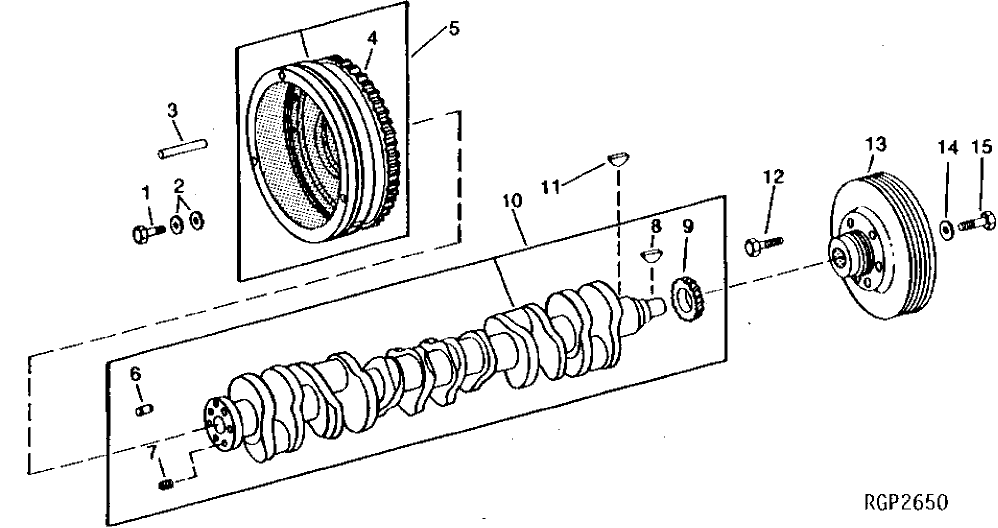

Запчасти John Deere 90B 33 - CRANKSHAFT AND FLYWHEEL 10 - ENGINE

1

R44888

CAP SCREW

12.700 X 95.250 MM (1/2" X 3-3/4") (SUB FOR R44724 OR R44888, APPL)

4шт.

2

U41514

WASHER

8шт.

3

R32192

DOWEL PIN

3шт.

4

R28811

RING GEAR

(129 TEETH)

1шт.

5

AR54969

FLYWHEEL

(MARKED R50860)

1шт.

6

R41934

DOWEL PIN

1шт.

7

22H821

SET SCREW

1/2" X 1/2", (SUB FOR R61292)

2шт.

8

R120752

KEY

1шт.

9

R26049

HELICAL GEAR

(USE WITH R40740, R47419, R56979 OR R63451)

1шт.

10

AR50136

CRANKSHAFT

(MARKED R40740) (SUB RE53422)

1шт.

AR74624

CRANKSHAFT

(MARKED R56979 OR R56934) (SUB RE53422)

1шт.

11

26H85

SHAFT KEY

1/4" X 1", (USE WITH R40740, R56979 OR R56934)

1шт.

12

19H1732

CAP SCREW

3/8" X 1-1/4"

6шт.

13

AR57241

PULLEY WITH DAMPENER

1шт.

14

R26333

WASHER

1шт.

15

R79846

CAP SCREW

15.875 X 50.800 MM (5/8" X 2")

1шт.
