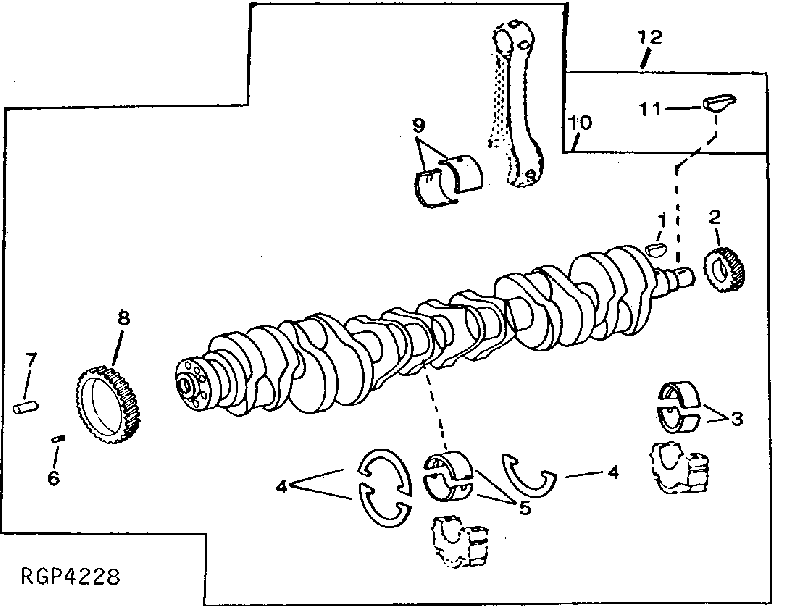

Запчасти John Deere 90B 32 - UNDERSIZE MAIN BEARING CRANKSHAFT AND BEARING KIT 10 - ENGINE

1

R120752

KEY

1шт.

2

R105488

GEAR

(USE WITH RE42678 OR RE53204 THIS APPLICATION)

1шт.

3

AR74816

BEARING

0.25MM (.010") US, (PKG R61909 AND R60473)

6шт.

4

AR77753

THRUST WASHER

0.18MM (.007") OS FLANGE (PKG (2) R63010 AND R62986)

1шт.

5

AR77750

THRUST BEARING

0.25MM (.010") US, (PKG R63003 AND R63007)

1шт.

6

22H821

SET SCREW

1/2" X 1/2"

2шт.

7

R41934

DOWEL PIN

1шт.

8

R63326

GEAR

1шт.

9

AR45723

BEARING

STD (PKG (2) R44378)

6шт.

10

RE42672

CRANKSHAFT

0.25MM (.010") US, (MARKED RE42678) (SUB FOR RE36416) (SUB RE53425)

1шт.

11

R116311

KEY

(USE WITH RE53204, THIS APPLICATION)

1шт.

12

RE53425

CRANKSHAFT

(A) (MARKED RE53204)

1шт.
