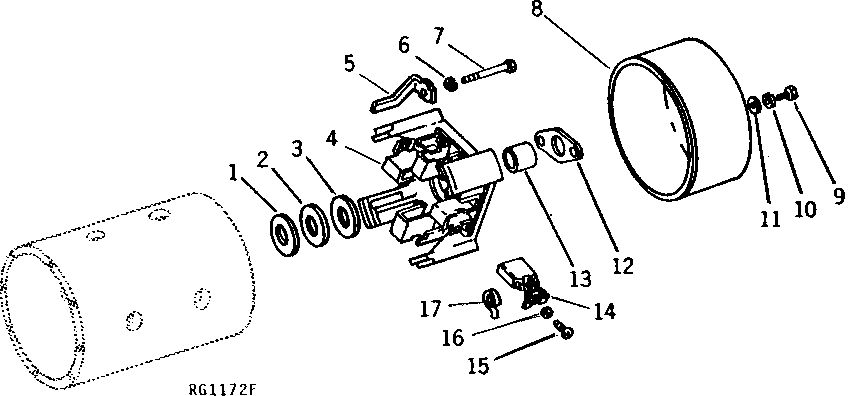

Запчасти John Deere 90B 12 - STARTER COMMUTATOR END FRAME 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

R50923

SHIM

0.18 MM (.007")

ARшт.

2

R50924

SHIM

0.48 MM (.009")

ARшт.

3

R50925

THRUST WASHER

1шт.

4

AR54997

FRAME

1шт.

5

R51660

BRACKET

2шт.

6

12H317

LOCK WASHER

9/16"

2шт.

7

R51659

SCREW

2шт.

8

R50912

COVER

1шт.

9

R50931

SCREW

2шт.

10

12H246

LOCK WASHER

0.190"

6шт.

11

24H1283

WASHER

7/32" X 1/2" X 0.049"

2шт.

12

R50930

GASKET

1шт.

13

R50891

BUSHING

1шт.

14

R50927

CARBON BRUSH CONDUCTOR

4шт.

15

R50929

SCREW

4шт.

16

12H246

LOCK WASHER

0.190"

4шт.

17

R50928

SPRING

4шт.
