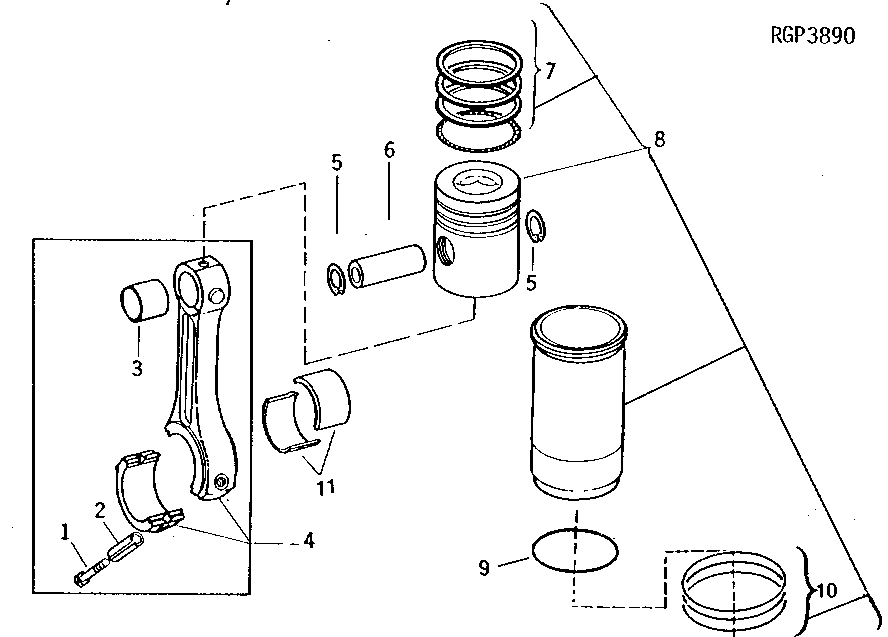

Запчасти John Deere 90B 25 - PISTONS, RINGS, LINERS, AND CONNECTING RODS 10 - ENGINE

1

R66452

CAP SCREW

(SUB FOR R53290)

12шт.

2

R53292

SLEEVE

12шт.

3

R42173

BUSHING

6шт.

4

AR86980

CONNECTING ROD

(MARKED R58882 OR R66922) (SUB FOR AR70912) (SUB SE500080)

6шт.

SE500080

CONNECTING ROD

(REMANUFACTURED)(FRACTURE JOINT)

6шт.

5

R54114

SNAP RING

12шт.

6

R41425

PISTON PIN

6шт.

R54263

PISTON PIN

0.08 MM (.003") OS (MARKED YELLOW)

6шт.

R54264

PISTON PIN

0.13 MM (.005") OS (MARKED RED)

6шт.

7

AR51741

PISTON RING KIT

6шт.

8

AR63272

PISTON-LINER KIT

(MARKED AR54552 OR AR58704)

6шт.

9

R116253

SHIM

0.050 MM (.002")

ARшт.

10

AR65507

O-RING KIT

1шт.

11

AR45723

BEARING

STD (PKG (2) R44378)

ARшт.

AR46395

BEARING

0.05 MM (.002") US (PKG (2) R44925)

ARшт.

AR46396

BEARING

0.25 MM (.010") US (PKG (2) R44926)

ARшт.

AR46397

BEARING

0.51 MM (.020") US (PKG (2) R44927)

ARшт.

AR46398

BEARING

0.76 MM (,030") US (PKG (2) R44928)

ARшт.
